Metallurgy Calcining Kilns Snail Induced Draught Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Power Source: Three Phase AC Motor Bearing: SKF/FAG/By Your Demand
Impeller Test: Ultrasonic Flaw Detection Bearing Cooling: Air Cooling Or Circulating Water Cooling
Lubrication: Oil Bath Lubrication Medium: Clean Air/Dusty Air
High Light:

metallurgy induced draught fan

,

1240mm Induced Draught Fan

,

metallurgy induced draught blower

Metallurgy Induced Draught Calcining Kilns Snail Fan Blower



Introduction:



The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It belongs to small flow and medium pressure series.

It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.

Metallurgy Induced Draught Calcining Kilns Snail Fan Blower has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.



Product features:



1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.

3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.

4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.

5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.



Technical specifications:



Fan Blower
PRODUCT PARAMETERS
Fan Blower
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Fan Blower
Performance
Impeller diameter 400~1240

mm

Speed of mainshaft 1450~2900 rpm
Pressure range 990~3197 Pa
Flow range

2750~75330

m3/h
Fan Blower
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Direct, Coupling, V-belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Fan Blower
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Fan Blower
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc



FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A : A:5-35 days.

3,Q : What’s your payment terms?

A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?

A: We have our own factory, our type is factory +trade.

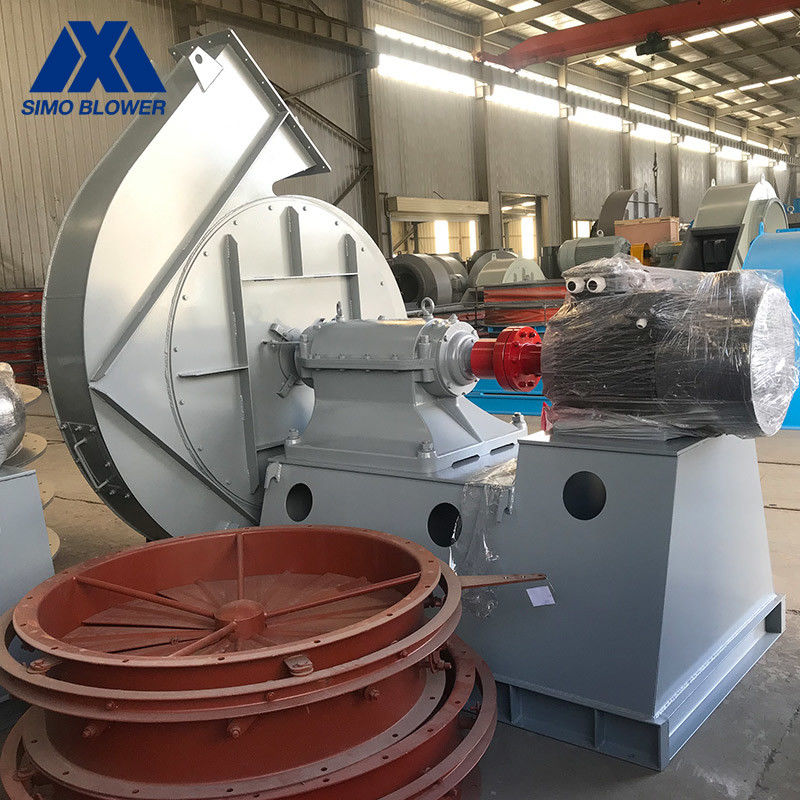

Metallurgy Calcining Kilns Snail Induced Draught Fan Blower 0

Metallurgy Calcining Kilns Snail Induced Draught Fan Blower 1

Metallurgy Calcining Kilns Snail Induced Draught Fan Blower 2

Metallurgy Calcining Kilns Snail Induced Draught Fan Blower 3
