Medium Pressure Single Inlet Brick Kiln Id Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-12
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Mounting: Free Standing Drivetrain: Direct/Coupling Driven/V-belt Driven
Blade: Forward / Backward/Backward Curved Bearing Cooling: Air Cooling Or Circulating Water Cooling
Color: Customer's Requirement Noise: Optional
High Light:

Medium Pressure id fan

,

Single Inlet id fan

,

Brick Kiln Id Fan

Medium Pressure Single Inlet Brick Kiln Induced Draft Centrifugal Fan



Introduction



6-12 series high-pressure heavy-duty centrifugal fan, suitable for conveying non-flammable gas and granule/powder/chip/fiber material at normal temperature or high temperature.

The output gas flow is slightly larger than the 6-11 series heavy-duty centrifugal fan, the air volume is large, and the pressure is high, smooth operation, high reliability and long life.

It is widely used in industrial applications such as sintering systems, large-scale dust collectors, feed/air supply/exhaustion of large industrial rotary kiln/calcining kiln, air intake of large boilers, and desulfurization and denitration of industrial waste gas.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-12 3.15D 1600~3150 354~1880 755~3323 0.75~3
4D 1250~2500 345~1933 1184~5495 0.75~4
5D 1400~2000 675~1953 2487~8623 2.2~7.5
6.3D 1000~1600 344~1985 1776~13799 1.1~11
8D 1120~1400 547~1517 3554~12074 3~7.5
10D 800~1250 350~1953 2843~22075 1.5~15
12.5D 400~1000 350~2043 7402~56902 2.2~22


Advantages and Features



1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. The blade placement angle is optimized, more wear-resistant and longer service life.

3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

4. The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

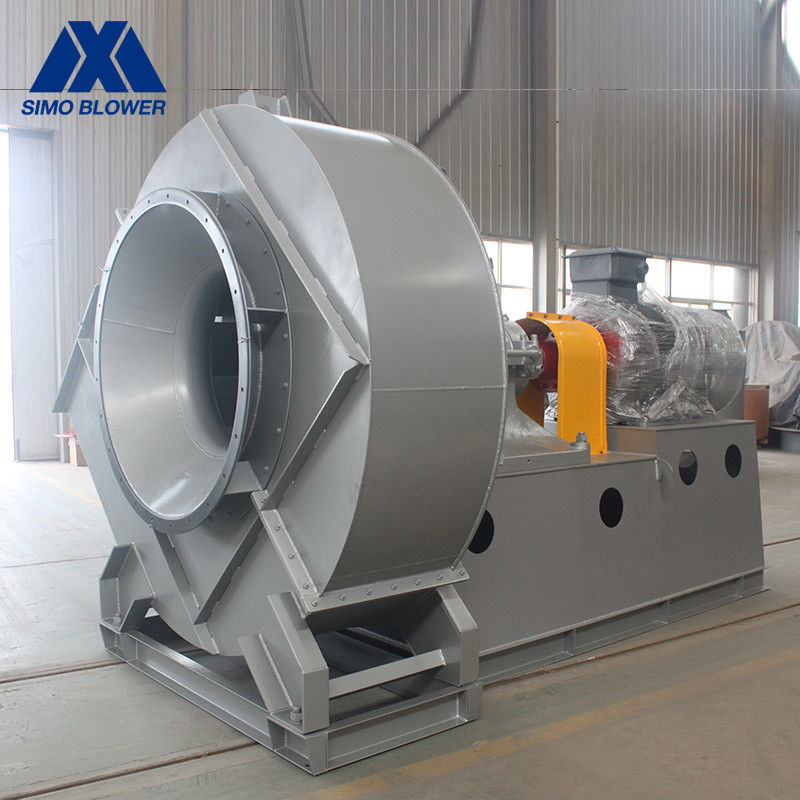

Medium Pressure Single Inlet Brick Kiln Id Fan 0

Medium Pressure Single Inlet Brick Kiln Id Fan 1
