Industrial Forward Harmful Air Emissions 9D Induced Draft Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Current Type: AC Power Source: Three Phase AC Motor
Blade: Forward / Backward/Backward Curved Bearing Cooling: Air Cooling Or Circulating Water Cooling
Noise: Optional Impeller Test: Ultrasonic Flaw Detection
High Light:

9D Induced Draft Fan

,

16540pa Induced Draft Fan

,

37kw Induced Draft Fan

Industrial Forward Harmful Air Emissions Induced Draft Centrifugal Fan



Introduction



The 7-08.26 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It belongs to small flow and medium pressure series.

It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
7-05 9D 980~2980 3160-16540 2473-484756 30 ~ 37
7-07 8D~16D 980~2980 451~27519 173~100788 7.5~315
7-08 7.1D~16D 980~2980 3215-27349 1049-330301 18.5~850
7-09 5.6A~7.1A 1420~1460 1263~2493 2953~12378 3~11
5C~10C 1470~3030 2264~4109 4486~36478 11~55
9D 1450 3427 ~ 3972 12519 ~ 25038 30 ~ 37
7-10 7.1D~16D 980~2980 3174-25573 1296-416978 18.5~850
8-12 4D~16D 730~2900 1206~4345 3242~145533 5.5~250
8-17 7.1D~9D 2900~2930 10728~20250 768~6019 11~55
9-03 8D~9D 2950 1668022314 301911632 37110
9-08 4A~6.3A 2900 3407~9698 2198~13525 5.5~55
7.1D~16D 960~2900 3031~16250 8792~123090 18.5~850
9-10 4A~7.1A 2900 3253~11717 824~9988 2.2~55
8D~16D 960~2900 2705~15425 3297~63305 7.5~315
9-11 4D~16D 730~2900 1412~4835 3297~66620 5.5~280



Advantages and Features



1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.

3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.

4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.

5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

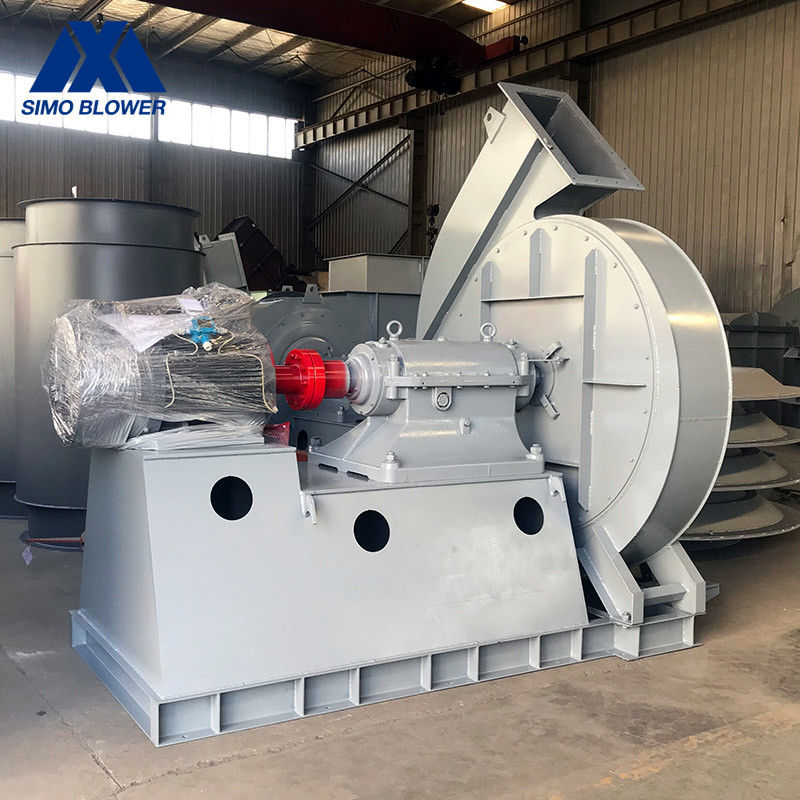

Industrial Forward Harmful Air Emissions 9D Induced Draft Fan 0
