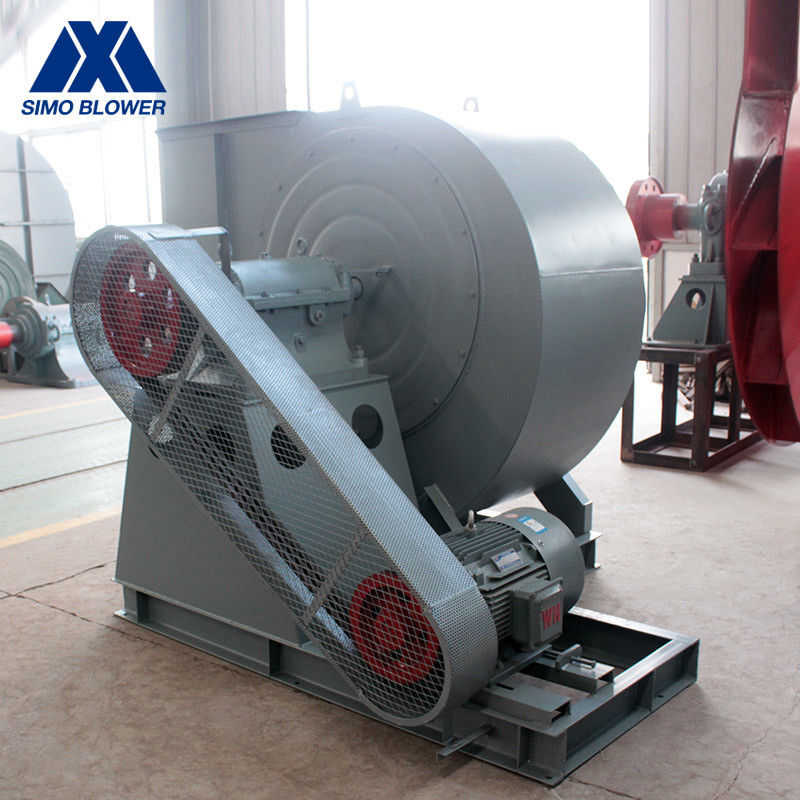

Backward Anti - Corrosion Centrifugal Id Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-07
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Current Type: AC Material: Carbon Steel/Alloy Steel/Stainless Steel
Lubrication: Oil Bath Lubrication Bearing Cooling: Air Cooling Or Circulating Water Cooling
Type: Centrifugal Fan System Type: Single Inlet, Overhang Type
High Light:

Centrifugal Id Fan Blower

,

Backward Id Fan Blower

,

Id Centrifugal Fan Blower

Long Lifetime Backward Anticorrosion Induced Draft Centrifugal Fan



Introduction



The 7-07 series high-pressure centrifugal fan has a high output pressure, can transport normal temperature or high temperature various gases and various forms of materials, and also can be used in harsh working environments.

Such as conveying high temperature/harmful/dangerous gas, hard particles, powder, debris, fiber, forced ventilation, industrial dust collectors, air filtration systems, flue gas desulfurization, flue gas denitration, industrial boiler forced draft and induced draft fan, the material conveying of the various back kiln & calcining kiln, the induced draft of the smelting furnace and the casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, etc.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
7-07 5C 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6C 2360 26232264 49099817 11
7.1C 1830 ~ 2450 2188 ~ 3862 775720771 15 ~ 30
8C 1910 35173034 1158223164 30
9C 1570 30022591 1355527111 30
10C 1470 ~ 1650 2806 ~ 4109 17410 36478 45 ~ 55


Advantages and Features



1. It can output high out gas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. Compact shape, saving space.

3. In the use of common base, the installation is very simple and requires little support from a professional technician.

4. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

5. For dusty gases, we are able to satisfy a wide range of conditions from a small amount of dust to a very high dust content, after special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller more than 3 times.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
