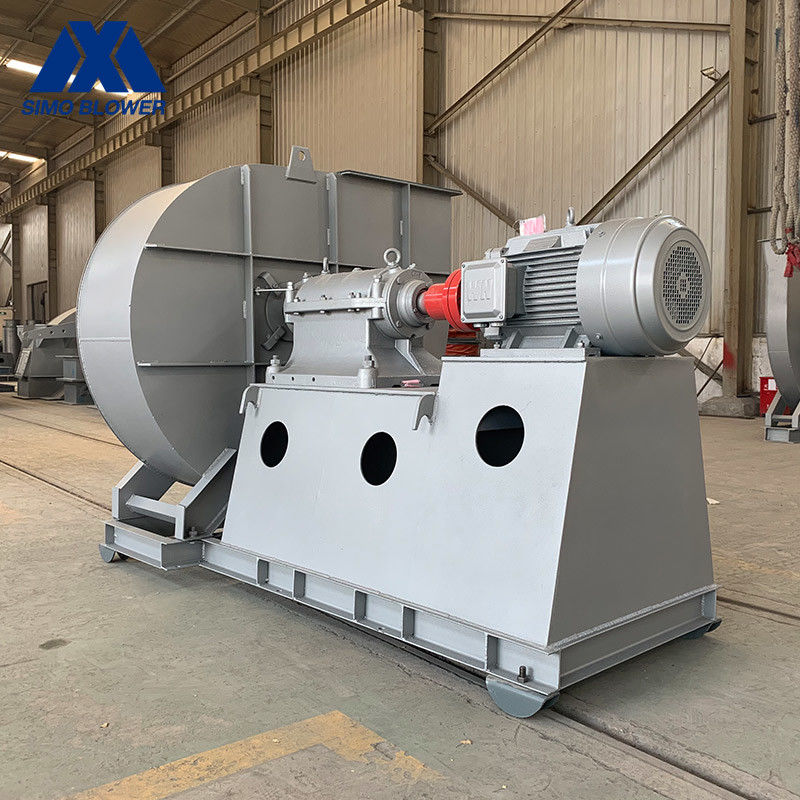

Carbon Steel Gray Boiler Air Supply 10KV Centrifugal Air Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Voltage: 380V/415V/440V/660V/6KV/10KV Mounting: Free Standing
Material: Carbon Steel/Alloy Steel/Stainless Steel Warranty: 1 Year
Blade: Forward / Backward/Backward Curved Category: Blower
High Light:

10KV Centrifugal Air Blower Fan

,

Boiler Centrifugal Air Blower Fan

,

10KV centrifugal blower fan

Carbon Steel Gray Boiler Air Supply Centrifugal Air Blower Fan



Introduction



Centrifugal fan is a machine that relies on input mechanical energy to increase gas pressure and discharge gas. It is a driven fluid machine. Centrifugal fans are widely used in ventilation, dust exhaust and cooling of factories, mines, tunnels, cooling towers, vehicles, ships and buildings; ventilation and induced air of boilers and industrial furnaces; cooling and cooling in air conditioning equipment and household appliances Ventilation; drying and selection of grain.

This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.



Technical data



series

Blower Fan

model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Blower Fan

Power
(kW)

5-06 8D 1450 2592~1989 12028~20607 15
10D 1450 4051~3108 23493~40249 55
11D 1450 3036~2329 31269~53571 55
12.4D 1450 3858~2960 44792~76740 90



Advantages and Features



The 5-06 series fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, it can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.

It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.

If it contains a lot of impurities, it also can be used, but it will shorten the service life.

The maximum operating temperature of the induced draft fan must not exceed 250°C.

The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
