Stainless Steel Induced Draft Fan Backward Centrifugal Fan Three Phase

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Bearing Type: Rolling Bearing Motor Type: Three Phase AC Motor
System Type: Single Inlet, Overhang Type Color: Customer's Requirement
High Light:

induced draught fan

,

boiler draft fan

Stainless Steel Backward Energy Efficiency Induced Draft Blower Fan



Introduction



The Stainless Steel Backward Energy Efficiency Induced Draft Blower Fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

Stainless Steel Backward Energy Efficiency Induced Draft Blower Fan is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.

The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.

The fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).

The Stainless Steel Backward Energy Efficiency Induced Draft Blower Fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.



Technical data



series model

Induced Draft Blower

Rotation Speed
(r/min)

Induced Draft Blower

Total Pressure
(Pa)

Induced Draft Blower

Air Capacity
(m³/h)

Power
(kW)

9-10

Induced Draft Blower

8C 14502900 323115034 329714287 7.5110
9C 1450 41014597 469510717 1522
10C 1450 49585840 644015455 3037
11.2C 9601450 27057364 599021713 1575
12.5C 9601450 39759229 832730186 22110
14C 9601450 424911668 1169942409 37220
16C 9601450 557515425 1746363305 75315


Advantages and Features



1.Stainless Steel Backward Energy Efficiency Induced Draft Blower Fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

6.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

7. Running test and vibration value detection after the production is completed, the fan operation is reliable.

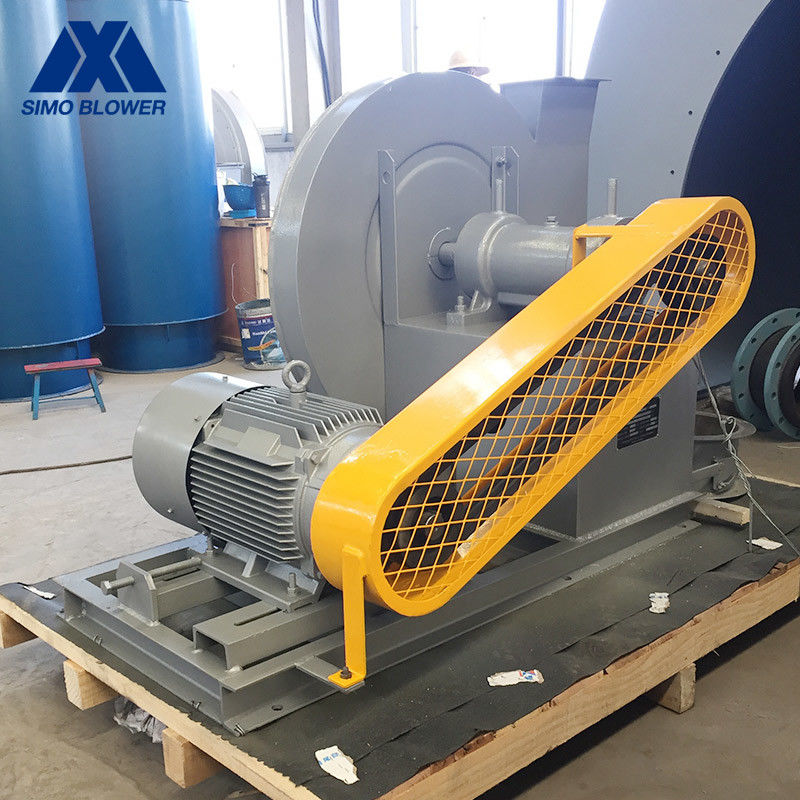

Stainless Steel Induced Draft Fan Backward Centrifugal Fan Three Phase 0

Stainless Steel Induced Draft Fan Backward Centrifugal Fan Three Phase 1
