CFB Induced Draft Fan Explosion Protection Id Boiler Draft Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 8-12
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Current Type: AC Impeller Test: Ultrasonic Flaw Detection
Blade: Forward / Backward/Backward Curved Medium: Clean Air/Dusty Air
High Light:

induced draught fan

,

induced draft blower

Industrial CFB Boiler Explosion Protection Induced Draft Blower Fan



Introduction



The Industrial CFB Boiler Explosion Protection Induced Draft Blower Fan is designed to work in the high efficiency area to achieve energy saving when operating under variable operating conditions.

It is jointly designed by the fan energy-saving group of the Ministry of Machinery Industry and organized by the national fan industry.

It’s a high-performance product promoted by the State Economic Commission and the Ministry of Machinery Industry.

Industrial CFB Boiler Explosion Protection Induced Draft Blower Fan has the advantages of high efficiency, low noise, wide performance and high efficiency curve.

Applicable to industrial boilers of 5 ~ 35 tons/hour, the similar intake conditions and performance can be adapted, but the maximum temperature should not exceed 250 °C.

The dust removal device with a dust removal efficiency of not less than 85% must be installed before the induced draft fan, in order to reduce the dust content of the flue gas entering the fan, which not only reduces the pollution of the flue gas to the environment, but also reduces the wear of the dust on the fan. It’s conducive to extending the life of the fan.



Technical data



series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

8-12

Blower Fan

4D 2900 19422108 32426869 5.57.5
4.5D 2900 24622805 46169781 7.511
5D 2900 30303375 633313417 1522
5.6D 2900 38054227 889718847 3037
6.3D 1450 12061373 633413419 5.57.5
7.1D 1450 15301746 906619208 1115
8D 1450 19422216 1296925059 18.530
9D 1450 24622805 1846639122 3745
10D 1450 30303462 2533053666 5575
11.2D 9601450 16674345 2356175397 45132
12.5D 730960 12062305 2490769396 2275
14D 730960 15102972 3499397496 37132
16D 730960 19713884 52234145533 75250


Advantages and Features



1. It is capable of outputting higher gas pressures and providing more gas flow with lower noise.

2. In the case of common base, the installation is very simple and requires little support from a professional technician.

3. The motor shaft is elastically connected with the drive shaft, and it is not necessary to constantly tighten the belt or replace the belt, and the maintenance workload is small.

4. Fans with an impeller diameter of less than 1400 mm operate at a normal temperature fan system, eliminating the need for additional bearing cooling devices, reducing the amount of user investment and maintenance.

5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

6. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.

7. After the production is completed, after running test and vibration value detection, the operation is reliable.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

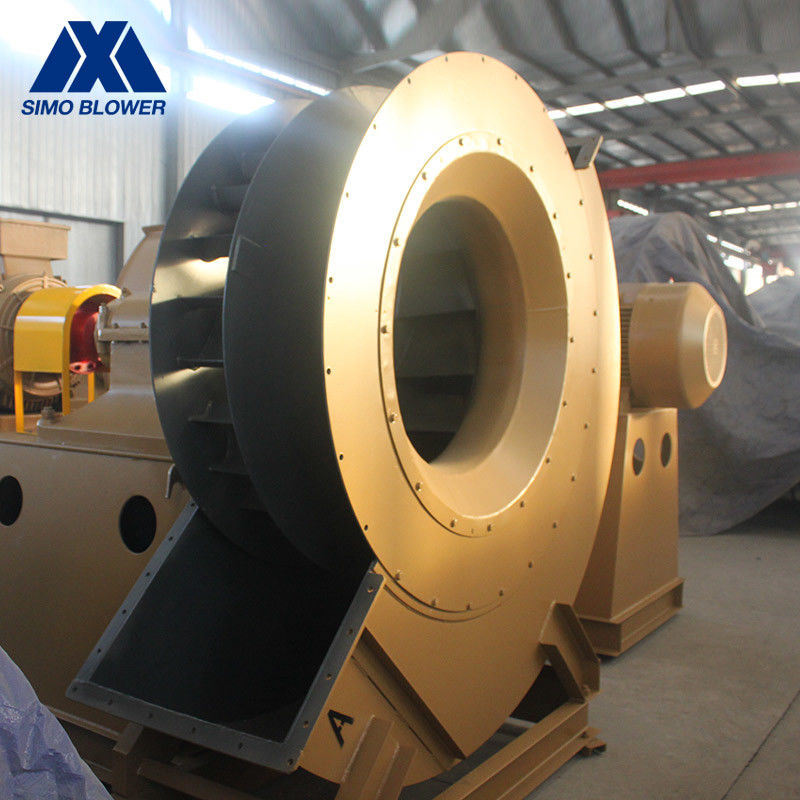

CFB Induced Draft Fan Explosion Protection Id Boiler Draft Fan 0
