Dryer Blower External Rotor Heavy Duty Centrifugal Fan Blower
Introduction

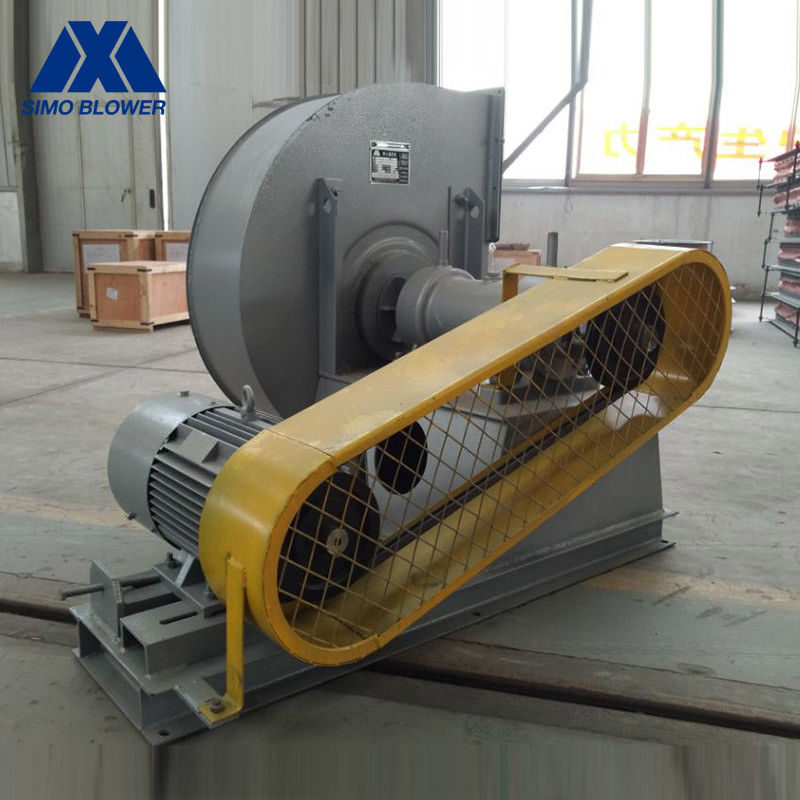

It is boiler induced draft Heavy Duty Centrifugal Fan Blower fan with a total internal pressure efficiency of 90.5% specially designed to be suitable for various coal quality and equipped with a smoke-and-dust removal device (1~20 tons/hour).
This type of fan is currently used in the boiler industry. The air volume of the induced draft fan and the difference in wind pressure are relatively large, in order to adapt to the above situation, considering the practicability of the fan, in addition to the 20-ton boiler ID fan need large power coupling direct transmission, the other uses the triangular belt type transmission.
This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.
Dryer Blower External Rotor Heavy Duty Centrifugal Fan Blower is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.
Technical data
PRODUCT PARAMETERS
|
|||
Centrifugal Fan Application
|
Temperature | Normal temperature air, Hot air | |
Air composition |
Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
Centrifugal Fan Performance
|
Impeller diameter | 400~3300 |
mm |
Speed of mainshaft |
≤4000 |
rpm | |
Pressure range | 684~9887 | Pa | |
Flow range |
5904~560735 |
m3/h | |
Centrifugal Fan
Structure
|
Blade | Backward | |
Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
Drivetrain | V-Belt | Can assign | |
Lubrication | Oil bath lubrication | ||
Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
Centrifugal Fan
System
Configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
Impeller |
Q235, Q345, SS304, SS316, HG785, DB685... |
||
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
Bearing | FAG, SKF, NSK, ZWZ… | ||
Centrifugal Fan
Optional
Components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
Advantages and Features
1. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
2. For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.
3. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
4. The Heavy Duty Centrifugal Fan Blower bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
5. The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
6. After the production is completed, all products are tested for running and vibration values for reliable operation.
7. There are a variety of accessories to choose from.
