Forward Induced Draft Id Fan In Power Plant Heat Dissipation

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Current Type: AC Voltage: 380V/415V/440V/660V/6KV/10KV
Mounting: Free Standing Material: Carbon Steel/Alloy Steel/Stainless Steel
High Light:

induced draught fan

,

induced draft blower

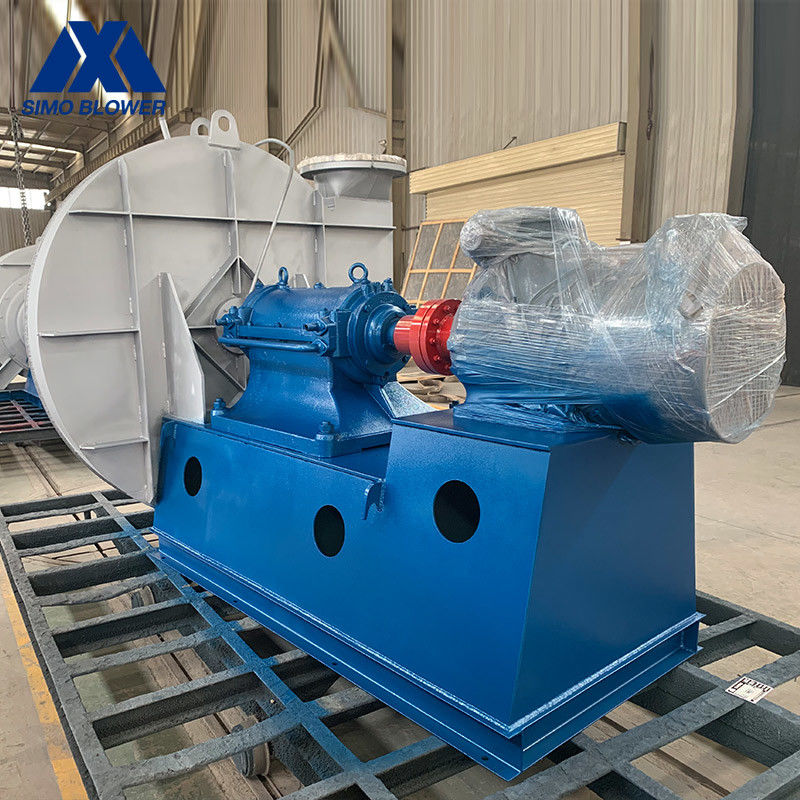

Forward Efficient Energy-Saving Heat Dissipation Induced Draft Fan



Introduction



Forward Efficient Energy-Saving Heat Dissipation Induced Draft Fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.

The fan can also be used as the blast for various furnace forging furnaces.

Forward Efficient Energy-Saving Heat Dissipation Induced Draft Fan is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.

It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.



Technical data



series model

Induced Draft Fan

Rotation Speed
(r/min)

Induced Draft Fan

Total Pressure
(Pa)

Induced Draft Fan

Air Capacity
(m³/h)

Power
(kW)

9-03

Induced Draft Fan

8D 2950 1668017631 30198117 3755
9D 2950 2134822314 432611632 75110



Advantages and Features



1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.

2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.

3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.

4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.

5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

6.After the completion of production, after running test and vibration value detection, the operation is reliable.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
