Explosion Proof Blower
>
Q345 Centrifugal Explosion Proof Blower SIMO High Wear Resistance

Q345 Centrifugal Explosion Proof Blower SIMO High Wear Resistance

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-09
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 7-09
Application:
Industrial Ventilation
Feature:
High Performance
Voltage:
380V/415V/440V/660V/6KV/10KV
Motor:
SIEMENS/ABB/By Your Demand
Material:
Stainless Steel
Type:
Centrifugal Fan
Highlight:

High Light

Highlight:

explosion proof blower fan

,

backward curved centrifugal blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Q345 High Wear Resistance Explosion Proof Centrifugal Blower Fan


Introduction

1. Q345 High Wear Resistance Explosion Proof Centrifugal Blower Fan can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.
2. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
3. The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.
4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft can still maintain a reliable strength at high temperature.
5. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
6. The impeller is subjected to high standard dynamic balance correction to ensure stable operation of the fan.
7. The fan system adopts a detachable design, which greatly reduces the transportation cost of customers.
8. Each part has an installation number and can be successfully assembled under the guidance of the installation manual.
9. Provide on-site installation guidance services.

Technical data

series model

Blower Fan
Rotation Speed
(r/min)

Blower Fan
Total Pressure
(Pa)

Blower Fan
Air Capacity
(m³/h)

Power
(kW)

7-09
Blower Fan

5.6A 1420 1462~1263 2953~5907 3
6A 1440 1728~1492 3684~7368 5.5
7.1A 1460 2493~2153 6189~12378 11


Application


Explosion Proof Centrifugal Blower Fan​ is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

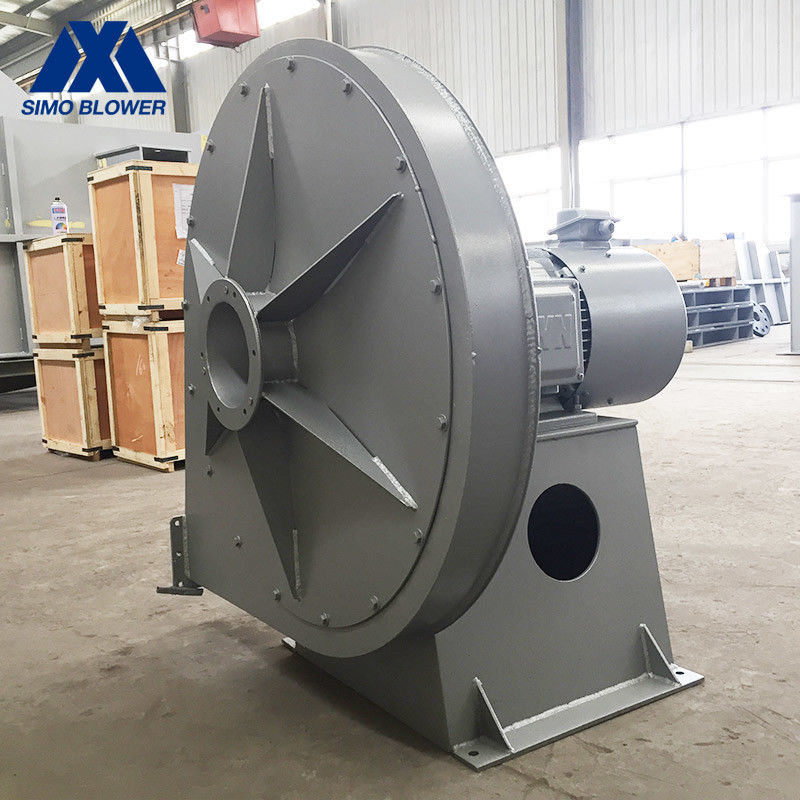

Q345 Centrifugal Explosion Proof Blower SIMO High Wear Resistance 0
