Coupling Driven Backward Curved Centrifugal Fan Dynamic Balanced

Coupling Driven Backward Curved Centrifugal Fan Dynamic Balanced

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-14
Application:
Industrial Ventilation
Feature:
High Performance
Mounting:
Free Standing
Bearing:
SKF/FAG/By Your Demand
Impeller:
Dynamic Balanced
Delivery Time:
30 Days
High Light:

High Light

High Light:

explosion proof blower fan

,

large centrifugal blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Coupling Driven Backward Curved Explosion Proof Centrifugal Blower Fan



Introduction



The Coupling Driven Backward Curved Explosion Proof Centrifugal Blower Fan is suitable for indoor ventilation in general factories and large buildings.

Coupling Driven Backward Curved Explosion Proof Centrifugal Blower Fan can be used to input gas as well as to output gas.

The gas delivered by the Coupling Driven Backward Curved Explosion Proof Centrifugal Blower Fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.

It has large flow and low noise, more use in building ventilation, ventilation and drying of materials, air purification and industrial waste gas treatment, industrial dust collectors, air purification and discharge in hazardous working environments(Paper production line, electrolytic aluminum production line, textile factory...). Blasting of boilers and brick kilns, transport of various gases, transport of granules/powders/debris/fiber materials, etc.



Technical data

series model

Centrifugal Blower

Rotation Speed
(r/min)

Centrifugal Blower

Total Pressure
(Pa)

Centrifugal Blower

Air Capacity
(m³/h)

Power
(kW)

4-14

Centrifugal Blower

8D 1450 21771481 1698530134 18.5
9D 960 ~ 1450 824 ~ 2756 1601142906 11 ~ 30
10D 730 ~ 1450 588 ~ 3403 16701 58856 7.5 ~ 55
11.2D 730 ~ 1450 736 ~ 4276 23464 82688 11 ~ 90
12.5D 730 ~ 1450 912 ~ 5325 32619 114952 22 ~ 160
14D 730 ~ 1450 1147 ~ 6678 45827161499 37 ~ 315
16D 580 ~ 960 951 ~ 3825 54351159606 45 ~ 160



Application


Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

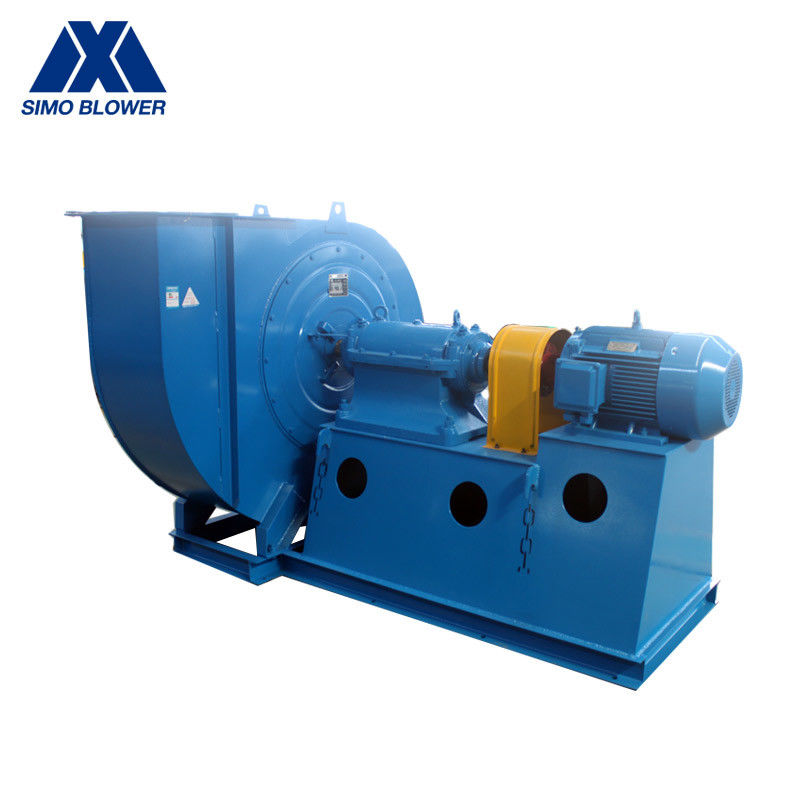

Coupling Driven Backward Curved Centrifugal Fan Dynamic Balanced 0
