| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-09 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Drivetrain: | V-belt Driven | Category: | Blower |
| Warranty: | 1 Year | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| High Light: | explosion proof blower fan,large centrifugal blower |
||

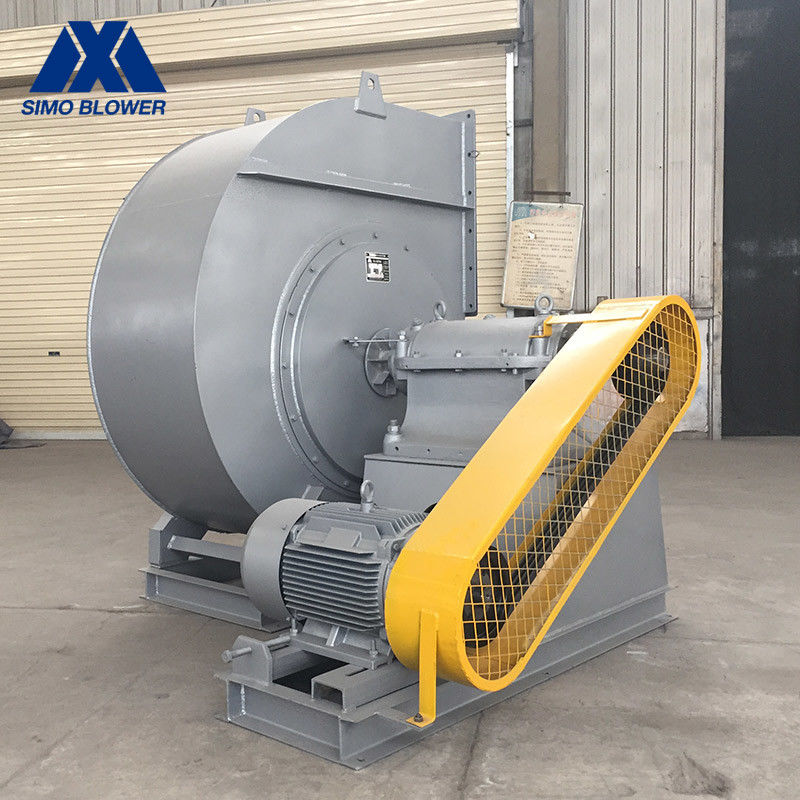

Q345 CFB Boiler Long Life Explosion Proof Centrifugal Blower Fan
Introduction
The Q345 CFB Boiler Long Life Explosion Proof Centrifugal Blower Fan is the earliest used fan in China, and it is also the most commonly used fan.
The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.
Technical data
| series | model |
Centrifugal Blower Rotation Speed |
Centrifugal Blower Total Pressure |
Centrifugal Blower Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
4-09 Centrifugal Blower |
7C | 710 ~ 1800 | 233 ~ 2406 | 4939～24038 | 1.5 ~ 15 |
| 8C | 630 ~ 1800 | 240 ~ 3150 | 6542～ 35882 | 1.5 ~ 37 | |
| 10C | 520 ~ 1300 | 258 ~ 2551 | 10931～50807 | 3 ~ 37 | |
| 12C | 420 ~ 1170 | 242 ~ 2980 | 15256 ~ 79015 | 4 ~ 75 | |
| 1040 | 2349～1493 | 37778～70236 | 55 |
Application
Explosion Proof Centrifugal Blower Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
