Industrial Explosion Proof Blower High Pressure Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-12C
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Lubrication: Oil Bath Lubrication Main Shaft: High-strength Carbon Structural Steel
Bearing Type: Rolling Bearing Medium: Clean Air/Dusty Air
High Light:

backward curved centrifugal blower

,

large centrifugal blower

High Pressure Industrial Boiler Explosion Proof Centrifugal Blower Fan



Introduction



1.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

6.Explosion Proof Centrifugal Blower Fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

7. Running test and vibration value detection after the production is completed, the fan operation is reliable.



Technical data

series model

Centrifugal Blower

Rotation Speed
(r/min)

Centrifugal Blower

Total Pressure
(Pa)

Centrifugal Blower

Air Capacity
(m³/h)

Power
(kW)

9-12

Centrifugal Blower

4C 2900 22852452 32976594 5.57.5
4.5C 2900 28933060 46959389 1115
5C 2900 35703854 644012880 1522
5.6C 2900 44824805 904818095 3045
6.3C 1450 14221500 644112882 7.511
7.1C 1450 18041942 922018439 1118.5
8C 1450 22852462 1318926378 18.530
9C 1450 28933099 1877937558 3755
10C 1450 35703854 2576042933 5590
11.2C 9601450 19614835 2396172381 30160
12.5C 730960 14122638 2532966620 2290
14C 730960 17753305 3558693596 45160
16C 730960 23144295 53120139712 75280


Application



Explosion Proof Centrifugal Blower Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

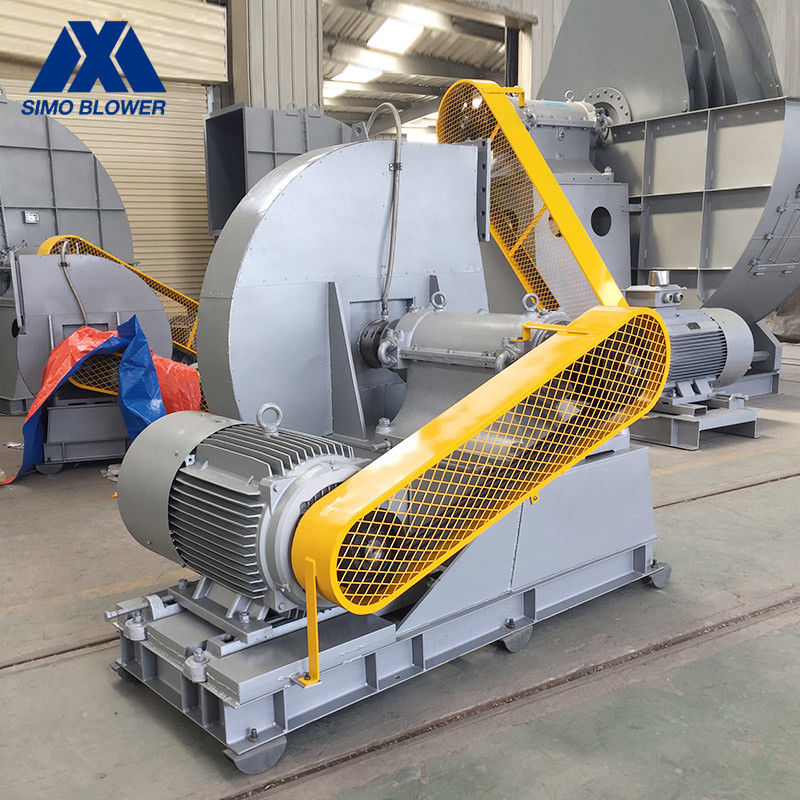

Industrial Explosion Proof Blower High Pressure Centrifugal Fan 0
