| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-11 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Motor: | SIEMENS/ABB/By Your Demand | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Bearing Type: | Rolling Bearing | Motor Type: | Three Phase AC Motor |
| High Light: | explosion proof blower fan,backward curved centrifugal blower |
||

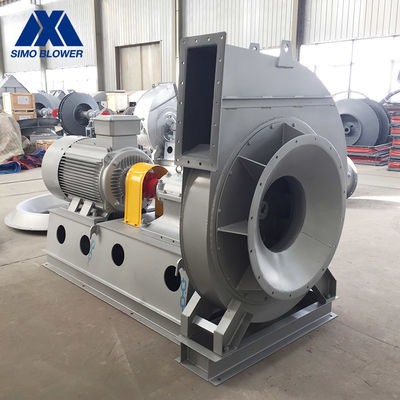

Single Suction Mineral Powder Sintering Explosion Proof Centrifugal Blower Fan
Introduction
1. Single Suction Mineral Powder Sintering Explosion Proof Centrifugal Blower Fan can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.
2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.
4. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
5. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.
Technical data
| series | model |
Centrifugal Blower Fan Rotation Speed |
Centrifugal Blower Fan Total Pressure |
Centrifugal Blower Fan Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
6-11 Centrifugal Blower Fan |
14D | 1450 | 5435～7086 | 22889～41542 | 90～110 |
| 15D | 1450 | 6240～8134 | 28153～51095 | 110～160 | |
| 16D | 1450 | 7099～9255 | 34167～62011 | 160～220 | |
| 17D | 1450 | 8014～10448 | 40892～74379 | 220～280 | |
| 18D | 1450 | 8986～11713 | 48648～88292 | 280～400 | |
| 19D | 1450 | 10012～13051 | 57215～103840 | 400～500 | |
| 20D | 1450 | 11093～14461 | 66733～121114 | 450～630 |
Application
Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
