| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-14 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Motor: | SIEMENS/ABB/By Your Demand | Lubrication: | Oil Bath Lubrication |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Type: | Centrifugal Fan |
| High Light: | backward curved centrifugal blower,large centrifugal blower |
||

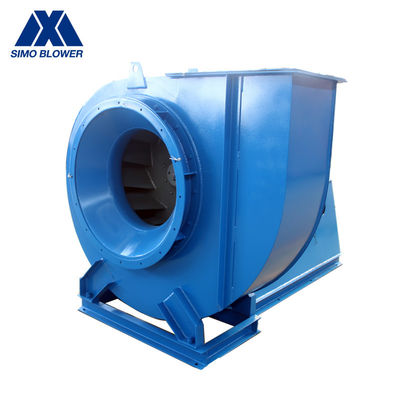

Long Lifetime Stokerfeed Boiler Explosion Proof Centrifugal Blower Fan
Introduction
1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
2. The motor selects the high-efficiency energy-saving motor of China's leading motor manufacturing enterprise (can also install the brand motor required by users), the quality is reliable, and the energy consumption is lower.
3. The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.
4. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.
5. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
6. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.
1. After the production is completed, all products are tested for running and vibration values for reliable operation.
2. Installation is simple and does not require the support of professional technicians.
Technical data
| series | model |
Centrifugal Blower Rotation Speed |
Centrifugal Blower Total Pressure |
Centrifugal Blower Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
4-14 Centrifugal Blower |
8D | 1450 | 2177～1481 | 16985～30134 | 18.5 |
| 9D | 960 ~ 1450 | 824 ~ 2756 | 16011～42906 | 11 ~ 30 | |
| 10D | 730 ~ 1450 | 588 ~ 3403 | 16701 ～58856 | 7.5 ~ 55 | |
| 11.2D | 730 ~ 1450 | 736 ~ 4276 | 23464 ～82688 | 11 ~ 90 | |
| 12.5D | 730 ~ 1450 | 912 ~ 5325 | 32619 ～114952 | 22 ~ 160 | |
| 14D | 730 ~ 1450 | 1147 ~ 6678 | 45827～161499 | 37 ~ 315 | |
| 16D | 580 ~ 960 | 951 ~ 3825 | 54351～159606 | 45 ~ 160 |
Application
Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
