| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Feature: | High Performance | Impeller: | Dynamic Balanced |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Lubrication: | Oil Bath Lubrication |
| Color: | Customer's Requirement | Electric Current Type: | AC |
| High Light: | industrial blower fan,single inlet single width centrifugal fan |
||

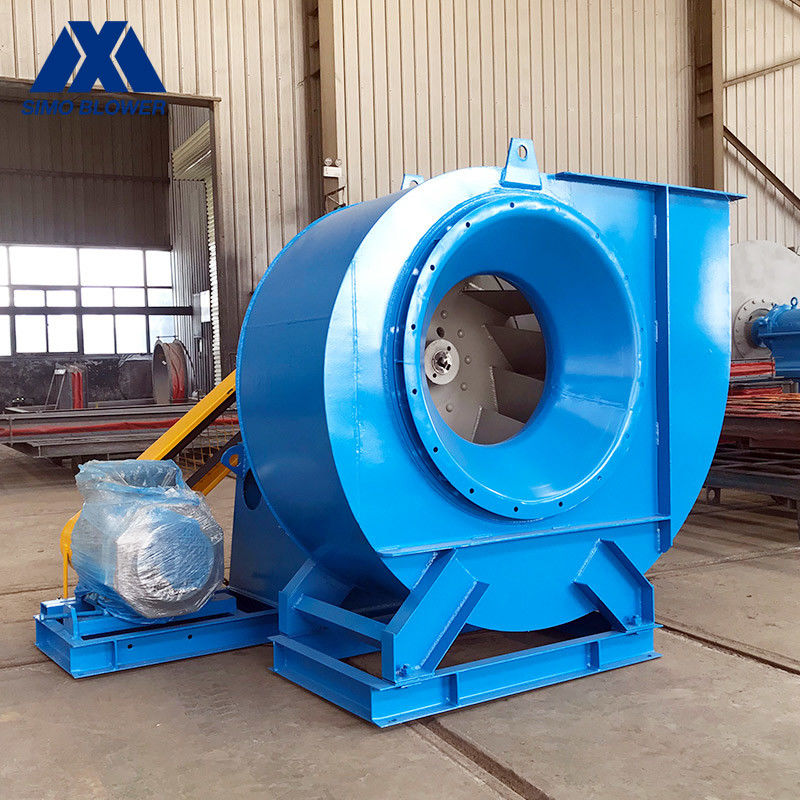

Flue Gas Desulfurization High Volume Single Inlet Heavy Duty Centrifugal Fan
Introduction
The 4-10 series ventilation and induced draft heavy duty centrifugal blower fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
Flue Gas Desulfurization High Volume Single Inlet Heavy Duty Centrifugal Fan can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
Flue Gas Desulfurization High Volume Single Inlet Heavy Duty Centrifugal Fan can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Centrifugal Blower Fan Application
|
Temperature | Normal temperature air, Hot air | |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Centrifugal Blower Fan Performance
|
Impeller diameter | 800~1800 | mm |
| Speed of mainshaft |
580~1450 |
rpm | |
| Pressure range | 553~6541 | Pa | |
| Flow range | 15229~233730 | m3/h | |
|
Centrifugal Blower Fan Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | V-Belt | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Centrifugal Blower Fan System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Centrifugal Blower Fan Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
||
Advantages and Features
1. The centrifugal blower fan blade placement angle is optimized, more wear-resistant and longer service life.
2. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
3. The centrifugal blower fan impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
4. The centrifugal blower fan impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
