| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-06 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Voltage: | 380V/415V/440V/660V/6KV/10KV | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
|---|---|---|---|
| Noise: | Optional | Color: | Customer's Requirement |
| Electric Current Type: | AC | Impeller Test: | Ultrasonic Flaw Detection |
| High Light: | induced draught fan,induced draft blower |
||
Fragment Material Delivery Wear Resistant Forced Draft Stainless Steel Fan
Introduction
The 5-06 series fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, it can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.
Fragment Material Delivery Wear Resistant Forced Draft Stainless Steel Fan can be used for more than four years when the concentration of impurities is less than 200 mg/m3.
If it contains a lot of impurities, it also can be used, but it will shorten the service life.
The maximum operating temperature of the induced draft fan must not exceed 250°C.
The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Induced Draft Fan
Application
|
Temperature | Normal temperature air, Hot air | |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Induced Draft Fan
Performance
|
Impeller diameter | 800~1240 | mm |
| Speed of mainshaft | 1450 | rpm | |
| Pressure range | 2592~3108 | Pa | |
| Flow range | 12028~76740 | m3/h | |
|
Induced Draft Fan
Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Coupling | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Induced Draft Fan
System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Induced Draft Fan
Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc. |
||

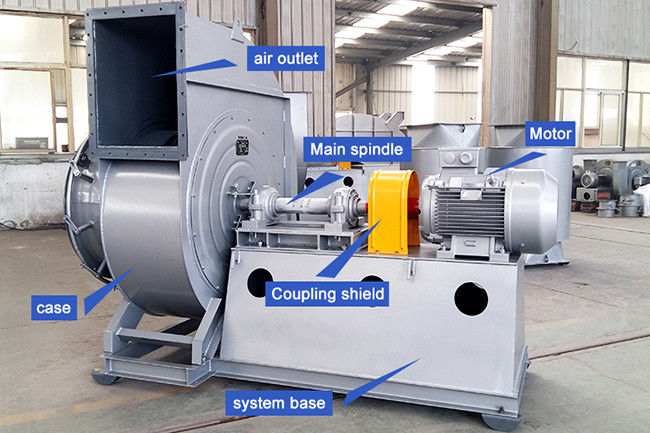

Advantages and Features
1. Impeller:
12 pieces of backward aerofoil blades are welded between the Arc cone front plate and the flat shaped rear plate. Because of the use of airfoil blades, the fan is guaranteed to have high efficiency, low noise and high strength. The impeller is corrected by static and dynamic balance, so the operation is stable. Forced draught fan and induced draught fan of the same machine number have same impeller structure.
2. Casing:
The casing is a volute welded by ordinary steel plates.
The casing of a single suction fan is made in three different forms: The No. 8 to 12 casing is made into an integral structure and cannot be disassembled; The No. 14 to 16 casing is made into a two open structure; The No. 18~29.5 casing is made into a three open structure.
The induced draft fan and the volute plate are appropriately thickened to prevent wear.
3. Inlet:
The converging and streamlined air inlet is made into a unitary structure and bolted to the inlet side of the fan.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
