Stainless Steel Induced Draft Fan Kilns Cooling Building Ventilate

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Voltage: 380V/415V/440V/660V/6KV/10KV Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Noise: Optional Color: Customer's Requirement
Electric Current Type: AC Medium: Clean Air/Dusty Air
High Light:

induced draught fan

,

induced draft blower

Kilns Cooling Building Ventilate Stainless Steel Induced Draft Air Fan



Introduction



The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.

Kilns Cooling Building Ventilate Stainless Steel Induced Draft Air Fan can be used to input gas as well as to output gas.

The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



PRODUCT PARAMETERS
Induced Draft Air Fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Induced Draft Air FanPerformance
Impeller diameter 800~1600 mm
Speed of mainshaft 580~1450 rpm
Pressure range 588~6678 Pa
Flow range 16011~161499 m3/h
Induced Draft Air Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Induced Draft Air Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Induced Draft Air Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.


Advantages and Features



1. The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.

2. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

3. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

4. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.

5. After the production is completed, all products are tested for running and vibration values for reliable operation.

6. Installation is simple and does not require the support of professional technicians.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

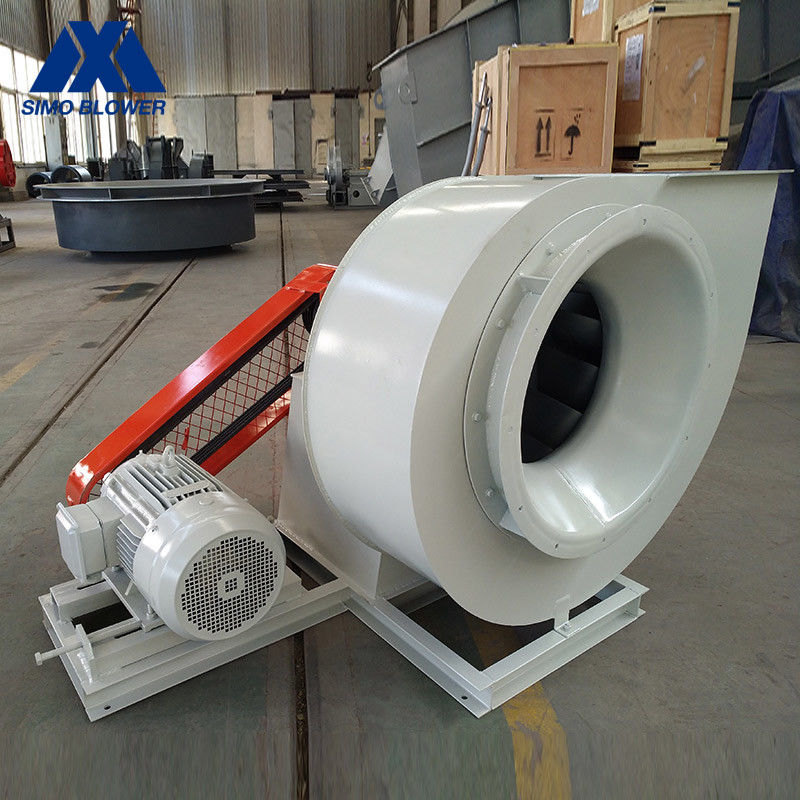

Stainless Steel Induced Draft Fan Kilns Cooling Building Ventilate 0

Stainless Steel Induced Draft Fan Kilns Cooling Building Ventilate 1

Stainless Steel Induced Draft Fan Kilns Cooling Building Ventilate 2
