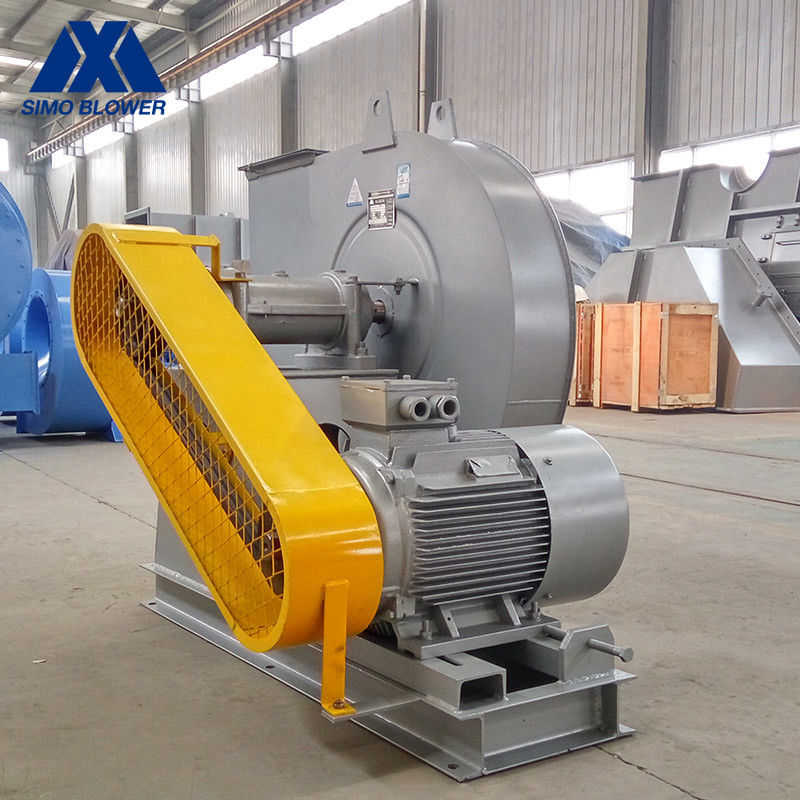

Medium Pressure Induced Draft Fan Boiler Id Fan Single Width Single Inlet

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel System Type: Single Inlet, Overhang Type
Electric Current Type: AC Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Impeller: Dynamic Balanced Type: Centrifugal Fan
High Light:

induced draught fan

,

induced draft blower

Industrial Boiler Forced Induced Draft Building Ventilation Blower Fan



Introduction



The 6-05 medium-pressure series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series centrifugal fan products with a wide range of performance.

The designed max full pressure efficiency is higher than 80% new series boiler ventilation fans and induced draft fans with the low noise.

It can be selected if the intake conditions are equivalent and the performance is suitable.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data







series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

6-05

Blower Fan

6C 20002880 20795884 15984375 311
7C 16802880 80125864 36556948 418.5
8C 15002880 207910474 284210371 437



Advantages and Features



Choose the right fan type, reasonable operating condition fan parameters, preferred flow pattern ,reasonably organize the gas source, carefully designed leaf type, increase wind tongue clearance, properly reduce the fan speed, improvement volute design, design principles for purifying the flow and minimizing secondary flow losses and so on. Combined with the finite difference method numerical calculation machine air inlet and impeller wheel cover type line, and the uniformity of the flow field at the fan impeller inlet is used as the optimization criterion to optimize the air inlet. The above method is combined with the original fan impeller, volute and other optimization design methods to integrate the optimal design procedure of the impeller, the volute and the air inlet, the lower specific noise level and the smaller fan size.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.



Medium Pressure Induced Draft Fan Boiler Id Fan Single Width Single Inlet 0

Medium Pressure Induced Draft Fan Boiler Id Fan Single Width Single Inlet 1
