| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Bearing: | SKF/FAG/By Your Demand |
|---|---|---|---|
| Main Shaft: | High-strength Carbon Structural Steel | Drivetrain: | V-belt Driven |
| Bearing Cooling: | Air Cooling Or Circulating Water Cooling | Voltage: | 380V/415V/440V/660V/6KV/10KV |
| High Light: | general ventilation fan,industrial ventilation fan |
||

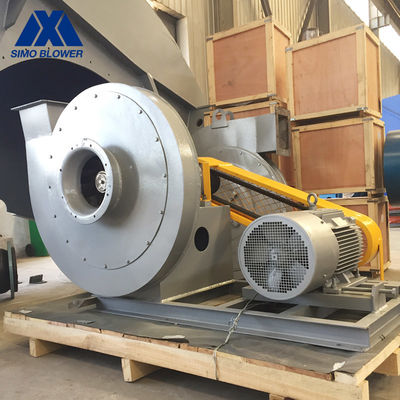

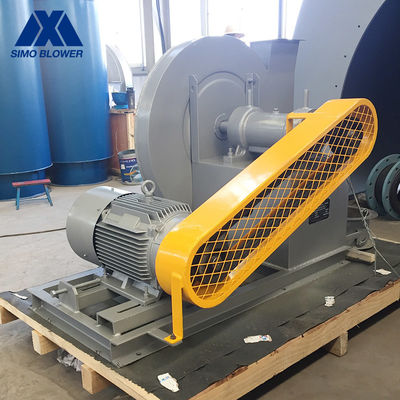

High Pressure High Temperature Materials Cooling Centrifugal Ventilation Fans
Introduction
The High Pressure High Temperature Materials Cooling Centrifugal Ventilation Fans can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.
The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.
High Pressure High Temperature Materials Cooling Centrifugal Ventilation Fans can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-10 | 8C | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9C | 1450 | 4101～4597 | 4695～10717 | 15～22 | |
| 10C | 1450 | 4958～5840 | 6440～15455 | 30～37 | |
| 11.2C | 960～1450 | 2705～7364 | 5990～21713 | 15～75 | |
| 12.5C | 960～1450 | 3975～9229 | 8327～30186 | 22～110 | |
| 14C | 960～1450 | 4249～11668 | 11699～42409 | 37～220 | |
| 16C | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
Advantages and Features
1.Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
2.The Centrifugal Ventilation Fan parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.
3.The Centrifugal Ventilation Fan impeller is calibrated by high standards for dynamic balance to ensure stable operation of the fan.
4. Running test and vibration value detection after the production is completed, the fan operation is reliable.
5.There are a variety of part options to choose from.
