| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 8-06 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Motor: | SIEMENS/ABB/By Your Demand | Power Source: | Three Phase AC Motor |
|---|---|---|---|
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Bearing: | SKF/FAG/By Your Demand |
| Main Shaft: | High-strength Carbon Structural Steel | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
| High Light: | stainless steel centrifugal blower,impeller centrifugal fan |
||

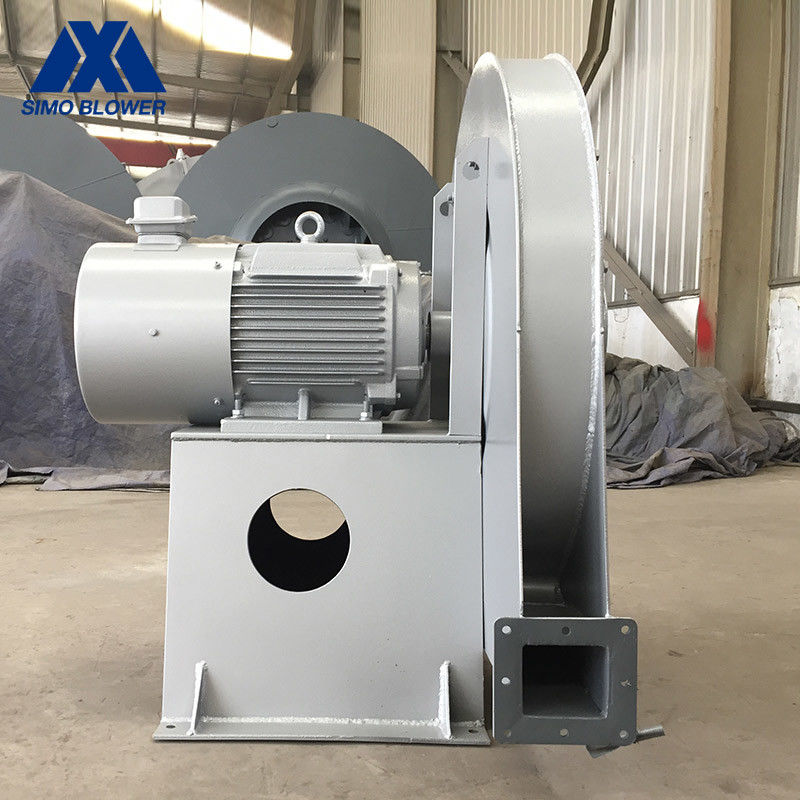

Air Filtration System Stainless Steel Coupling Driving Centrifugal Blower Fan
Introduction
Air Filtration System Stainless Steel Coupling Driving Centrifugal Blower Fan is jointly designed by the fan energy-saving group of the Ministry of Machinery Industry and organized by the national fan industry.
It’s a high-performance product promoted by the State Economic Commission and the Ministry of Machinery Industry.
Air Filtration System Stainless Steel Coupling Driving Centrifugal Blower Fan has the advantages of high efficiency, low noise, wide performance and high efficiency curve.
Applicable to industrial boilers of 5 ~ 35 tons/hour, the similar intake conditions and performance can be adapted, but the maximum temperature should not exceed 250 °C.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Centrifugal Blower Fan
Application
|
Temperature | Normal temperature air, Hot air | |
|
Air composition |
Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Centrifugal Blower Fan
Performance
|
Impeller diameter | 800~900 |
mm |
| Speed of mainshaft | 1450~1550 | rpm | |
| Pressure range | 1999~3236 | Pa | |
| Flow range |
3980~16825 |
m3/h | |
|
Centrifugal Blower Fan
Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Direct | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Centrifugal Blower Fan
System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller |
Q235, Q345, SS304, SS316, HG785, DB685... |
||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Centrifugal Blower Fan
Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
||
Advantages and Features
1. Air Filtration System Stainless Steel Coupling Driving Centrifugal Blower Fan is capable of outputting higher gas pressures and providing more gas flow with lower noise.
2. In the case of common base, the installation is very simple and requires little support from a professional technician.
3. The motor shaft is elastically connected with the drive shaft, and it is not necessary to constantly tighten the belt or replace the belt, and the maintenance workload is small.
4. Fans with an impeller diameter of less than 1400 mm operate at a normal temperature fan system, eliminating the need for additional bearing cooling devices, reducing the amount of user investment and maintenance.
5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
6. Air Filtration System Stainless Steel Coupling Driving Centrifugal Blower Fan is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
7. After the production is completed, after running test and vibration value detection, the operation is reliable.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
