Primary Air Stainless Steel Blower High Pressure Centrifugal Fan

Primary Air Stainless Steel Blower High Pressure Centrifugal Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 8-17
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 8-17
Main Shaft:
High-strength Carbon Structural Steel
Mounting:
Free Standing
Bearing:
SKF/FAG/By Your Demand
Current Type:
AC
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
After-sales Service Provided:
Field Installation, Commissioning And Training
High Light:

High Light

High Light:

stainless steel centrifugal blower

,

impeller centrifugal fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Industrial Boiler Primary Air Stainless Steel High Pressure Blower



Introduction



The 8-17 series high-pressure small-flow fan is designed for applications requiring high pressure.

Under the premise of ensuring a certain amount of air, the full pressure can reach the high pressure requirement.

Industrial Boiler Primary Air Stainless Steel High Pressure Blower is mainly used for blasting furnace blast and other forced air supply, and can also be used for tunnels to exhaust or supply air through hard pipes.

The fans are divided into general type, explosion-proof type, anti-corrosion type and high temperature type.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



series model

Centrifugal Fan

Rotation Speed
(r/min)

Centrifugal Fan

Total Pressure
(Pa)

Centrifugal Fan

Air Capacity
(m³/h)

Power
(KW)

8-17

Centrifugal Fan

7.1A 2900 1072811973 7682919 1118.5
8A 2930 1429715680 11104219 2237
9A 2930 1830820250 15916019 3755



Advantages and Features



1. Industrial Boiler Primary Air Stainless Steel High Pressure Blower can output high outgas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of common base, the installation is very simple and requires little support from a professional technician.

3. The bearing housing is reserved for the installation position of the temperature and vibration sensors, and the fan operation monitoring device can be conveniently installed.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

6. The tight fit between the components and the good sealing performance ensure that the output pressure is not reduced.

7. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

8. After the production is completed, after running test and vibration value detection, the operation is reliable.

9. There are a variety of options to choose from.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

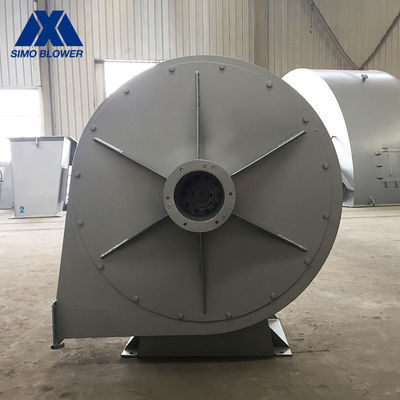

Primary Air Stainless Steel Blower High Pressure Centrifugal Fan 0
