Sintering Machine Centrifugal Flow Fan Single Inlet Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Voltage: 380V/415V/440V/660V/6KV/10KV Warranty: 1 Year
Motor: SIEMENS/ABB/By Your Demand Noise: Optional
High Light:

industrial centrifugal blower

,

centrifugal exhaust fan blower

Single Inlet Efficient Energy-Saving Sintering Machine Centrifugal Flow Fan



Introduction



The Single Inlet Efficient Energy-Saving Sintering Machine Centrifugal Flow Fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.



Technical data

Centrifugal Flow Fanseries Centrifugal Flow Fanmodel Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m3/h)
Power
(kW)
4-09 2.8A 2900 994606 11312356 1.5
3.2A 1450 ~ 2900 198 ~1300 844 3517 1.1 ~ 2.2
3.6A 1450 ~ 2900 247 ~ 1578 1332 5268 1.1 ~ 3
4A 1450 ~ 2900 329 ~ 2014 2006 7419 1.1 ~ 5.5
4.5A 1450 ~ 2900 416 ~ 2554 2856 10562 1.1 ~ 7.5
5A 1450 ~ 2900 502 ~ 3187 3864 15456 2.2 ~ 15
6A 960 ~ 1450 317 ~ 1139 4420 13353 1.5 ~ 4



Advantages and Features



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The Centrifugal Flow Fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.

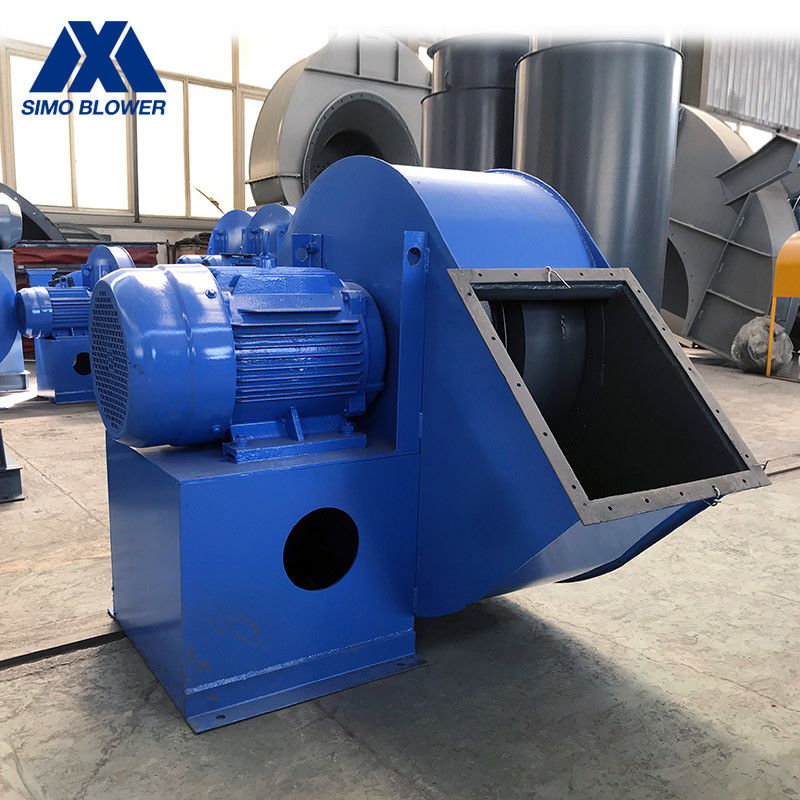

Sintering Machine Centrifugal Flow Fan Single Inlet Centrifugal Fan 0

Sintering Machine Centrifugal Flow Fan Single Inlet Centrifugal Fan 1
