quality Impeller Diameter 400-3500mm High Efficiency Medium Pressure Centrifugal Fan factory

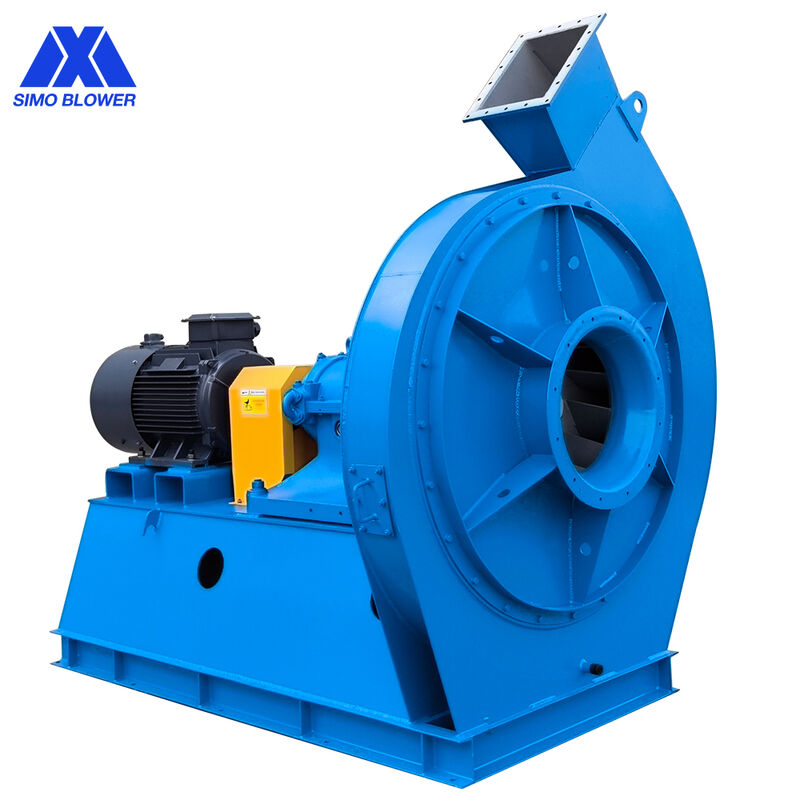

Impeller Diameter 400-3500mm High Efficiency Medium Pressure Centrifugal Fan

Name: Impeller Diameter 400-3500mm High Efficiency Medium Pressure Centrifugal Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 7-26
Price: 2,650.00 USD
Availability: InStock

Brand Name

SIMO

Product Model

SIMO Blower 7-26

Certificate

CE, ISO9001:2008,TUV

Country Of Origin

Henan China

MOQ

1 Set

Unit Price

300-5000 USD

Payment Method

T/T, L/C, Payment Term Is Negotiable

Supply Capacity

500 Sets Per Month

Product Details

Highlight:

high efficiency centrifugal fan

medium pressure industrial fan

400-3500mm impeller diameter fan

Electric Current Type: AC

Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung

Drivetrain: Coupling Driven

Bearing: SKF/FAG/By Your Demand

Motor: SIEMENS/ABB/By Your Demand

Blade: Backward

Product Description

Detailed Specifications And Features

Energy Saving Centrifugal Induced Draft Blower Heat Dissipation Efficient

Designed for versatile industrial applications, our medium pressure centrifugal fan series offers impeller diameters ranging from 400mm to 3500mm, providing flexible solutions for various airflow and pressure requirements. Engineered with advanced aerodynamic profiles and precision-crafted impellers, these fans deliver exceptional efficiency in ventilation, exhaust, and process air systems.

The comprehensive size range allows for optimal selection based on specific operational needs, while the robust construction ensures reliable performance in demanding environments. Each fan features dynamically balanced components for smooth operation, reduced noise levels, and minimal vibration, extending equipment service life and minimizing maintenance requirements.

Ideal for HVAC systems, industrial manufacturing, power plants, and environmental protection applications, these fans can be customized with different motor configurations, material specifications, and accessory options. The series represents an optimal balance of performance, energy savings, and durability, making it a cost-effective choice for medium-pressure air movement applications across multiple industries.

Series no.	7-08series	Feature selection
		Normal	anti-corrosion	wear-resisting		High temperature		anti-explosion	Remarks
Performance	Impeller diameter	400-3500mm
	Rotation speed	≤1450rpm
	Pressure range	2144-13067Pa
	Flow range	2196-479182m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station							Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling							Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven							Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250ºC		Customer request
	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas		Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc							Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel		FRP, Aluminum alloy		Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel							Can be specified
	Bearing	ZWZ, SKF, FAG, NSK							Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
