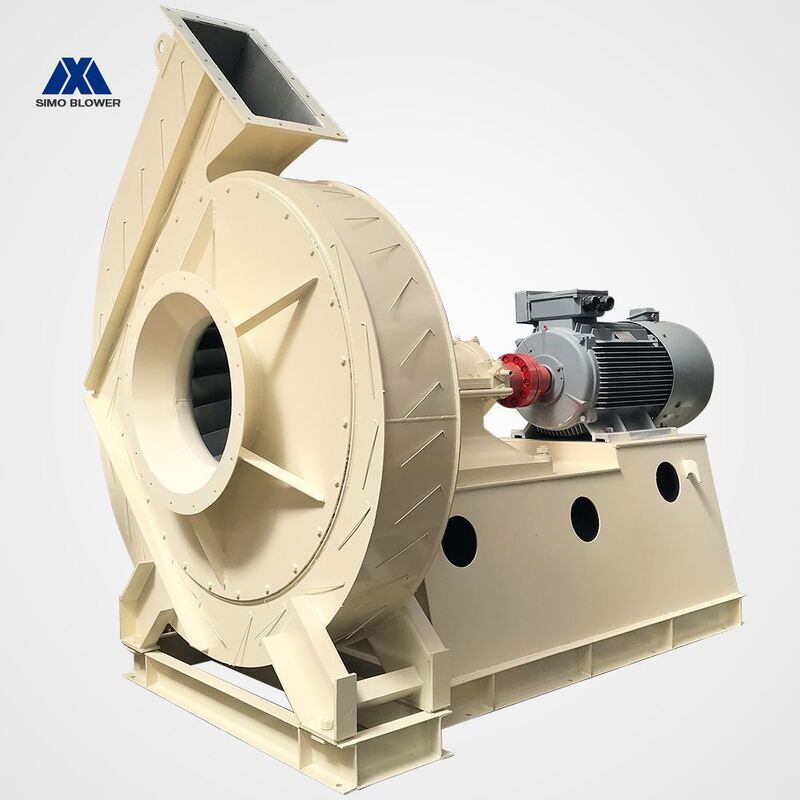

Hg785 High-Temperature & High-Strength Alloyed Steel Industrial Centrifugal Fan/Blower
Hg785 High-Temperature & High-Strength Alloyed Steel Industrial Centrifugal Fan/Blower
Brand Name
SIMO BLOWER
Product Model
7-26
Certificate
CE
Country Of Origin
CHINA
MOQ
1
Unit Price
$500-1000
Payment Method
L/C, T/T, D/P
Supply Capacity
300sets 30days
Product Details
Highlight:
high-temperature industrial centrifugal fan
,high-strength alloyed steel blower
,industrial centrifugal fan with warranty
Product Name:
Industrial VentilationCentrifugal Fans
Application:
Industrial, Commercial
Material:
Aluminum, Steel, Plastic
Voltage:
380V/415V/440V/660V
Size:
Customized
Power Source:
Three Phase AC Motor
Bearing:
SKF/FAG/By Your Demand
Warranty:
1 Year
Product Description
Detailed Specifications And Features
HG785 High-temperature & High-strength alloyed steel Industrial centrifugal fan/blower
The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 89.8%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
| Series no. | 7-08series | Feature selection | |||||||
| Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks | ||||
| Performance | Impeller diameter | 400-3500mm | |||||||
| Rotation speed | ≤1450rpm | ||||||||
| Pressure range | 2144-13067Pa | ||||||||
| Flow range | 2196-479182m³/h | ||||||||
| Structure | Blade type | Backward, Straight, Aerofoil type | |||||||
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | ||||||||
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | |||||||
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | |||||||
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||||
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250ºC | Customer request | |||
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | ||||
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||||
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | |||
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | |||||||
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified | |||||||
| Bearing housing | Cast iron | ||||||||
| Foundation bolts | GB799-1988 | ||||||||
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | ||||||||
