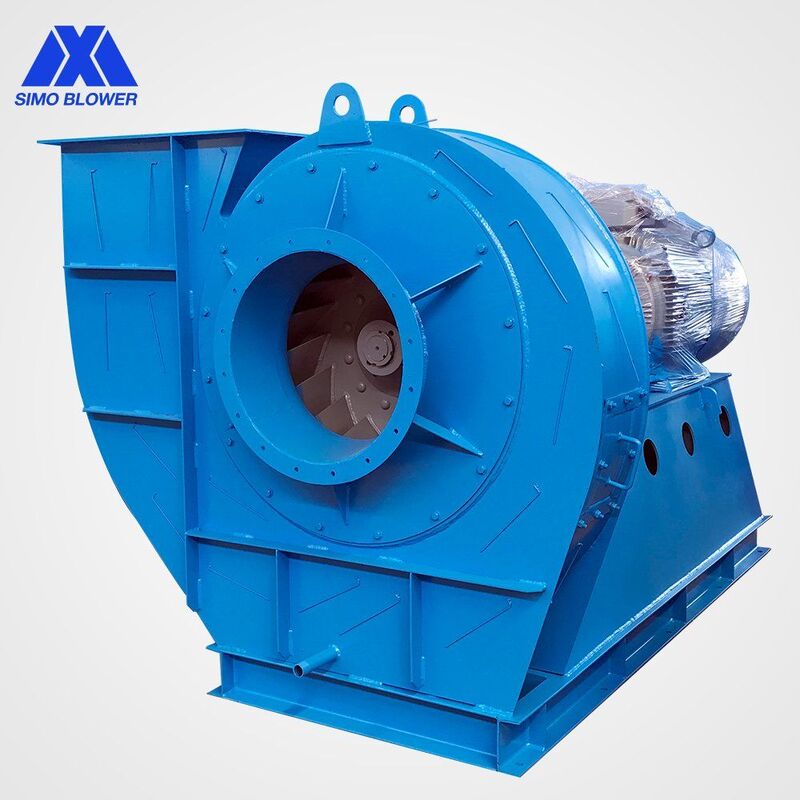

Large Air Flow Wear Resistant Centrifugal Flow Fan with Compact Structure

Product Details:

Detail Information

Highlight:

High Light

Highlight:

Product Description

Large Air Flow and Wear Resistant Dust Exhaust Fan Secondary Air Blower Dust Collection Fan

Key Features

• Simple structure with compact footprint

• Minimal maintenance requirements

• High power transmission efficiency (up to 99%)

• Adjustable spindle speed via pulley diameter changes

• Durable belt system with easy replacement

Technical Specifications

The following data represents partial performance specifications. Contact us for customized solutions to meet your specific requirements.

Series	Impeller Dia (mm)	Rotation Speed (r/min)	Total Pressure (Pa)	Air Capacity (m³/h)	Power (kW)
4-09	280~1200	400~2900	179~3202	794~75552	0.75~15
4-10	800~3150	480~1450	343~6181	15229~878200	5.5~1600
4-14	280~1600	400~2900	166~6678	565~161499	0.55~315
4-16	300~800	630~2900	226~3334	990~41700	0.75~30
5-05	250~1240	1420~2900	907~4051	599~76740	0.75~90
5-06	800~3150	480~1450	1358~9828	9890~709000	15~2000
5-11	400~1240	1450~2900	990~3903	2750~75330	3~90
5-12	400~1250	1000~3550	742~4234	2065~67803	2.2~110
6-03	500~900	1500~2900	187~5482	2240~17300	4~37
6-04	1200~2000	1450	3581~14867	14800~163000	55~800
6-05	250~1120	1420~3450	451~4086	403~41773	0.55~55
6-06	800~3150	480~1450	1859~10980	9900~776000	15~2500
6-09	630	1460	1800~1407	4116~7464	5.5
6-11	1400~2000	1450	5435~14461	22889~121114	90~630
6-12	315~1250	400~3150	344~2043	755~56902	0.75~22
7-05	900	980~2980	3160~16540	2473~484756	30~37
7-07	800~1600	980~2980	451~27519	173~100788	7.5~315
7-08	710~1600	980~2980	3215~27349	1049~330301	18.5~850
7-09	500~1000	1420~3030	1263~4109	2953~36478	3~55
7-10	710~1600	980~2980	3174~25573	1296~416978	18.5~850
8-12	400~1600	730~2900	1206~4345	3242~145533	5.5~250
8-17	710~900	2900~2930	10728~20250	768~6019	11~55
9-03	800~900	2950	16680~22314	3019~11632	37~110
9-08	400~1600	960~2900	3031~16250	2198~123090	5.5~850
9-10	400~1600	960~2900	2705~15425	824~63305	2.2~315
9-11	400~1600	730~2900	1412~4835	3297~66620	5.5~280
