Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies

Name: Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 9-08
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SIMO BLOWER
Certification:	CE/ISO9001/ISO45001
Model Number:	SIMO Blower 9-08

Detail Information

Place of Origin:

China

Brand Name:

SIMO BLOWER

Certification:

CE/ISO9001/ISO45001

Model Number:

SIMO Blower 9-08

Applicable Industries:

Manufacturing Plant, Construction Works , Energy & Mining, Industrial Generation System

After-sales Service Provided:

Field Installation, Commissioning And Training

Place Of Origin:

Henan, China

Voltage:

380V/415V/440V/660V/6KV/10KV

Customized Support:

OEM, ODM, OBM

Blade Material:

Carbon Steel, Stainless Steel

Mounting:

FREE STANDING

Motor:

Wear Resistant Impeller Blades

Impeller:

Backward Impeller Blade

Warranty:

1 Year

Highlight:

High Light

Highlight:

titanium belt driven centrifugal fan

chemical industry ventilation blower

customized centrifugal fan with warranty

Trading Information

Minimum Order Quantity:

≥1 set

Price:

$500-1,0000.00/set

Packaging Details:

1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement

Delivery Time:

35days To be negotiated

Payment Terms:

L/C, T/T, , D/P

Supply Ability:

300sets 30days

Product Description

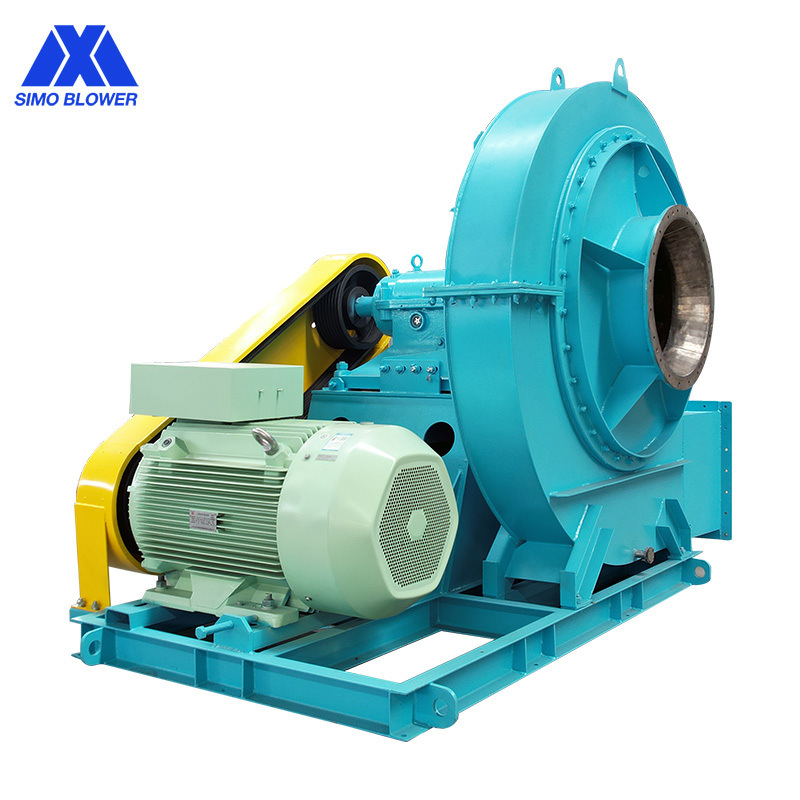

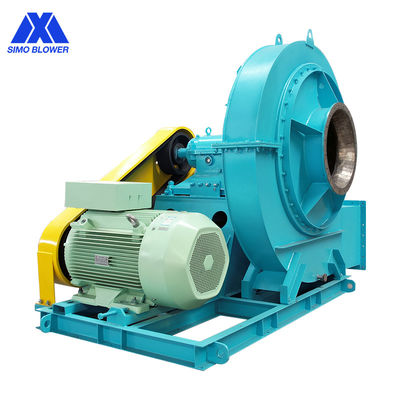

Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industries

Titanium Material Belt Driven Chemical Ventilation Centrifugal Blower Fan

SIMO Blower has been deeply involved in the chemical industry for many years and has designed many new models for use, which have received widespread praise from customers worldwide.

Product Features

It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.

Technical Specifications

Series no.	9-08 series	Feature selection
Performance	Impeller diameter	400-3500mm
	Rotation speed	≤3000rpm
	Pressure range	3215-27349Pa
	Flow range	1049-330301m3/h

Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

If you have requirements of our products, please leave us the parameter information of your need, and then our technical engineers will provide you with professional fan solutions.

Manufacturing Process

Our Advantages

Cooperating Customers

If you have a need for a fan in the Petrochemical industry, please provide the operating requirements and parameter information, and we will provide you with professional fan solutions.
