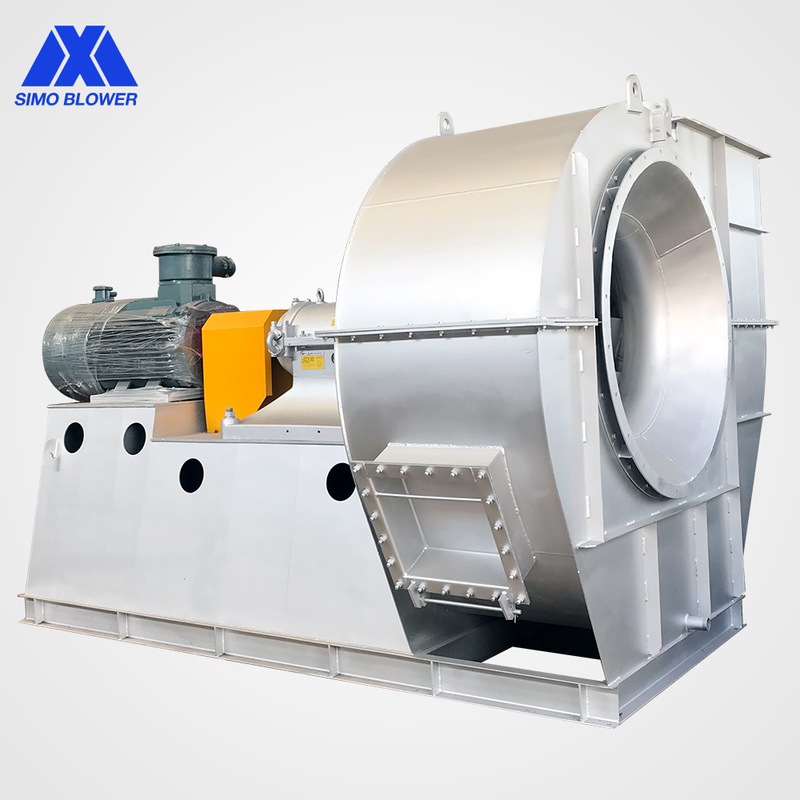

High Temperature Centrifugal Fan for Steel Plant Rotary Hearth Furnace

Name: High Temperature Centrifugal Fan for Steel Plant Rotary Hearth Furnace
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 4-10
Price: 2,650.00 USD
Availability: InStock

Product Details:

Place of Origin:	Henan China
Brand Name:	SIMO
Certification:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 4-10

Detail Information

Place of Origin:

Henan China

Brand Name:

SIMO

Certification:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 4-10

Type:

Centrifugal Fan

Feature:

High Efficiency

After-sales Service Provided:

Field Installation, Commissioning And Training

Drivetrain:

Direct/Coupling Driven/V-belt Driven

Noise:

Optional

Bearing Type:

Rolling Bearing

Keywords:

4-10 Centrifugal FAN

Warranty:

1 Year

Highlight:

High Light

Highlight:

high temperature centrifugal fan

stainless steel blower for furnace

rotary hearth furnace blower

Trading Information

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

T/T, L/C, Payment Term Is Negotiable

Supply Ability:

500 Sets Per Month

Product Description

Steel Plant Rotary Hearth Furnace High Temperature Flue Gas Induced Draft Fan

Product Attributes

Type	Centrifugal Fan
Feature	High Efficiency
After-sales Service Provided	Field installation, commissioning and training
Drivetrain	Direct/Coupling Driven/V-belt Driven
Noise	Optional
Bearing Type	Rolling bearing
Keywords	4-10 centrifugal FAN
Warranty	1 Year

Product Description

Steel Plant Rotary Hearth Furnace High Temperature Induced Draft Fan is specifically engineered for metallurgical heating furnace applications. Constructed with special heat-resistant alloy steel to withstand continuous exposure to 800°C+ flue gases. Equipped with enhanced cooling system and water-cooled bearings for reliable operation under extreme conditions. Airflow capacity 20,000-150,000m³/h with static pressure up to 6500Pa, meeting stringent requirements of various rotary furnace flue gas systems.

Product Features

Can work stably at high medium temperature, and can output large gas flow with low noise when pressure requirements are met
Fan blade placement angle is optimized for increased wear resistance and longer service life
Air damper allows flexible adjustment of pressure and flow during operation. Option for variable frequency motor to adjust via speed changes
Material selection for impeller and main shaft based on working conditions (high-strength carbon steel, low-alloy steel, high-temperature alloy steel)
Fans with impeller diameters <1400mm at normal temperature don't require additional bearing cooling devices
Impeller is annealed to eliminate internal stress from welding, preventing creep and cracks
Ultrasonic flaw detection ensures no welding/material defects in impeller and main shaft
High standard dynamic balance correction ensures stable operation
Multiple accessory options available

Technical Specifications

The following data represents only part of our product's performance. If you don't find the specifications you need, please send us your requirements for customized design service.

4-10 Series \| Feature Selection
Performance	Impeller diameter	800-2950mm
	Rotation speed	580-1450r/min
	Pressure range	553-7218Pa
	Flow range	15229-810000m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI, DWDI, Overhung type
	Lubrication method	Oil bath, grease, lubrication oil station (can be specified)
	Cooling method	Air, Water, Oil cooling (can be specified)
	Driven mode	Direct, Coupling, Belt driven (can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| ≥250°C
	Gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temp gas \| Flammable/explosive gas
System configuration	Motor brand	Chinese brands, ABB, Siemens, WEG (can be specified)
	Impeller material	Carbon steel \| FRP, Stainless, Rubber \| Wear-resistant layer \| High temp alloy \| FRP, Aluminum
	Air inlet cone	Carbon steel \| FRP, Stainless, Rubber \| Carbon steel
	Casing	Carbon steel \| FRP, Stainless, Rubber \| Carbon steel
	Air damper	Carbon steel \| FRP, Stainless, Rubber \| Carbon steel
	Main shaft	High strength carbon steel, Alloy structural steel (can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (can be specified)
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Flexible connections, Counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument

Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.

FAQ

1. How many years experience does your company have in centrifugal fan machines?

Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company's pre-sales and after-sales service?

Before our cooperation, we have a professional technical team to help create technical solutions according to your working conditions to ensure centrifugal fan efficient operation. Welcome to visit SIMO BLOWER to see production process and quality monitoring system. After sales service includes 12 months repairing service and lifelong follow-up services. Our engineers are available for international repair services.

3. Does your company have qualifications?

All our products are produced according to ISO 9001-2008 and CE standards.

Pursue excellent quality, make perfect product!
