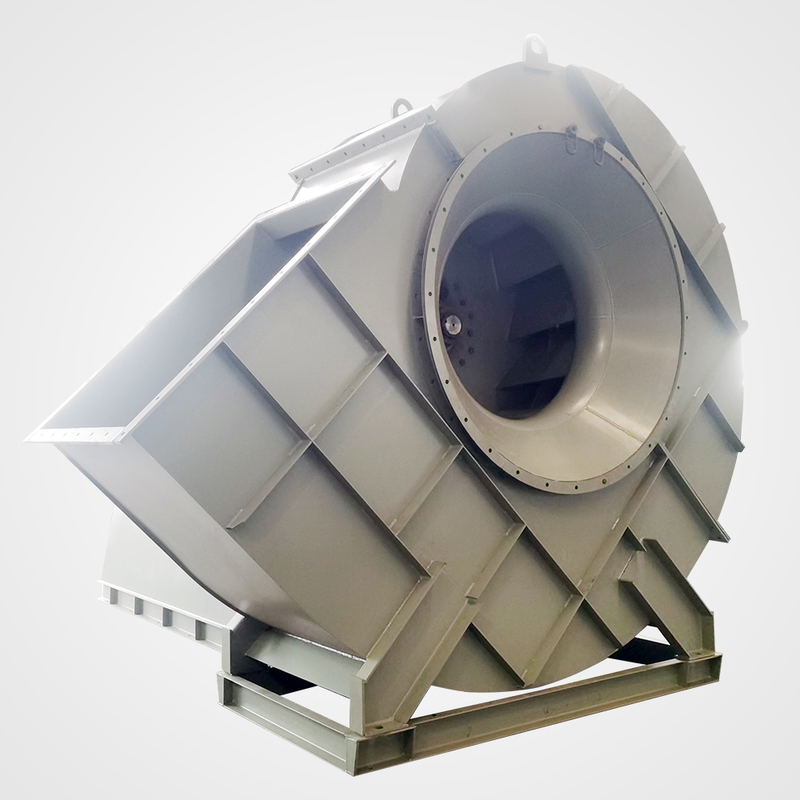

1000t/D Glass Furnace Induced Draft Fan for Flue Gas Treatment

Name: 1000t/D Glass Furnace Induced Draft Fan for Flue Gas Treatment
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 4-10
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	Henan China
Brand Name:	SIMO
Certification:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 4-10

Detail Information

Place of Origin:

Henan China

Brand Name:

SIMO

Certification:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 4-10

Type:

Centrifugal Fan

Feature:

High Efficiency

After-sales Service Provided:

Field Installation, Commissioning And Training

Drivetrain:

Direct/Coupling Driven/V-belt Driven

Noise:

Optional

Bearing Type:

Rolling Bearing

Keywords:

4-73 Centrifugal FAN

Warranty:

1 Year

Highlight:

High Light

Highlight:

1000t/D glass furnace induced draft fan

flue gas treatment induced draft fan

industrial induced draft fan with warranty

Trading Information

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

T/T, L/C, Payment Term Is Negotiable

Supply Ability:

500 Sets Per Month

Product Description

1000t/D Glass Melting Furnace Flue Gas Treatment Supporting Induced Draft Fan

Attribute	Value
Type	Centrifugal Fan
Feature	High Efficiency
After-sales Service Provided	Field installation, commissioning and training
Drivetrain	Direct/Coupling Driven/V-belt Driven
Noise	Optional
Bearing Type	Rolling bearing
Keywords	4-73 centrifugal FAN
Warranty	1 Year

Product Description

The 1000t/D Glass Melting Furnace Flue Gas Treatment Supporting Induced Draft Fan is specially engineered for high-temperature flue gas emission systems in glass furnaces. Constructed with high-temperature and corrosion-resistant alloys for reliable operation in harsh environments. Its optimized impeller design delivers high airflow and stable pressure, ensuring perfect compatibility with flue gas treatment systems while meeting stringent environmental standards.

Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.

Product Features

Technical Specifications

The following datas are only part of performance of our product.

If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.

Series no.		4-10 series	Feature selection
Performance	Impeller diameter	800-2950mm
	Rotation speed	580-1450r/min
	Pressure range	553-7218Pa
	Flow range	15229-810000m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station	Can be specified
Cooling method	Air cooling, Water cooling, Oil cooling	Can be specified
Driven mode	Direct driven, Coupling driven, Belt driven	Can be specified
Gas composition	Gas temperature	Normal	Customer request
Gas composition	gas characteristic	Clean gas	Corrosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc	Can be specified
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.

FAQ

1. How many years your company has experience in centrifugal fan machines?

Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company's pre-sales service and after-sales service?

Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
