45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

Name: 45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 4-10
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SIMO BLOWER
Certification:	CE, ISO
Model Number:	SIMO Blower 4-10

Detail Information

Place of Origin:

China

Brand Name:

SIMO BLOWER

Certification:

CE, ISO

Model Number:

SIMO Blower 4-10

Application:

Industrial Waste Gas Treatment

Bearing Cooling:

Air Cooling Or Circulating Water Cooling

Blade Type:

Forward

Motor:

SIEMENS/ABB/By Your Demand

Impeller:

Dynamic Balanced

Voltage:

380V/50Hz/60Hz

Pressure Range:

615-8302PA

Rotation SpeedMedium:

≤4000rpm

Impeller Support:

SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung Type

Transport Package:

Standard Export Wooden Case

Production Capacity:

10, 000 Sets/Year

After-Sales Service Provided:

Field Maintenance And Repair Service

Customized Support:

ODM OEM OBM

Warranty:

1 Year

Highlight:

High Light

Highlight:

Material Conveying Fan

Low Pressure centrifugal Fan

Large Air Volume Fan

Trading Information

Minimum Order Quantity:

≥1 set

Price:

$500-1,0000.00/set

Packaging Details:

1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement

Delivery Time:

35days (To be negotiated)

Payment Terms:

T/T, L/C, D/P

Supply Ability:

300 Set/Sets per Month centrifugal fan and axial fan manufacturer

Product Description

45kW Material Conveying Large Air Volume Low Pressure Centrifugal Fan Blower

We are a professional manufacturer specializing in the R&D, manufacturing, production, sales, and after-sales services of fans. This fan has a power rating of 45kW and is specifically designed for material conveying systems. With large airflow and low pressure, it can efficiently and stably convey various material streams. It is widely used in industries such as mining, chemicals, and food processing, ensuring continuous and stable material delivery and efficient operation.

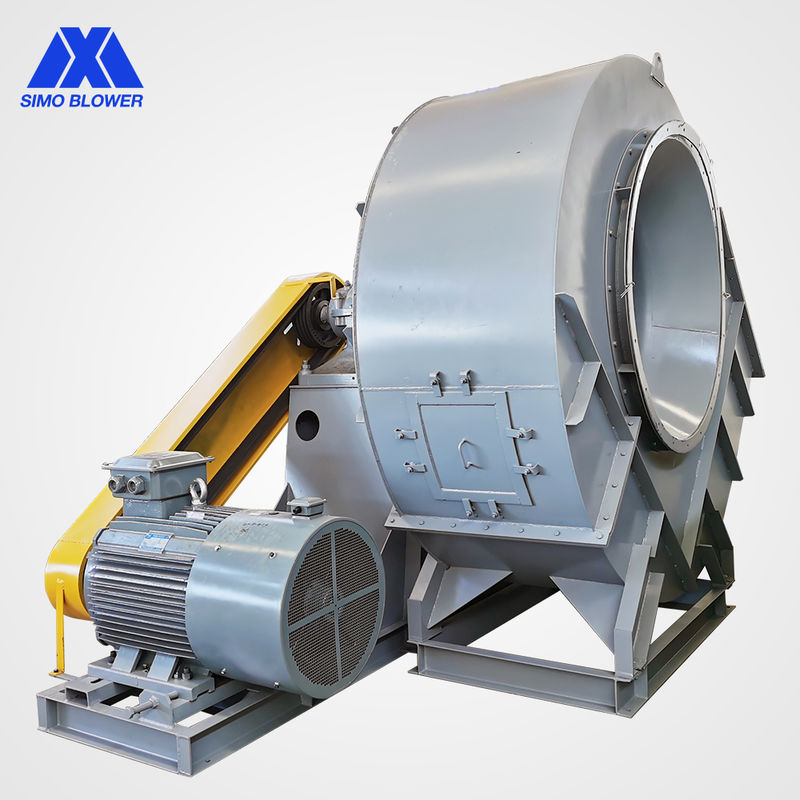

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure 0

Technical specifications:
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

series	model	Rotation Speed (r/min)	Total Pressure (Pa)	Air Capacity (m³/h)	Power (kW)
4-10	8C	1450	2104~1400	16156~30993	18.55
	9C	960 ~ 1450	775 ~ 2668	15229 ~ 44128	11 ~ 37
	10C	730 ~ 1450	553 ~ 3301	15886 ~ 60533	7.5 ~ 55
	11C	730 ~ 1450	669 ~ 4003	21144 ~ 80570	11 ~ 90
	12C	730 ~ 1450	797 ~ 4777	25661 ~ 104600	15 ~ 132
	14C	730 ~ 1450	1086 ~ 6541	43591 ~166100	37 ~ 315
	16C	580 ~ 960	895 ~ 3709	51699 ~ 164150	45 ~ 185
	18C	580 ~ 960	1133 ~ 4710	73610 ~ 233730	75 ~ 280
	20C	580 ~ 960	1400 ~ 5837	100970 ~ 320610	110 ~ 520
	22C	480 ~ 960	1216 ~ 6865	116000 ~ 434000	140 ~ 850
	25C	480 ~ 730	1579 ~ 5138	171000 ~ 484000	165 ~ 700
	28C	375 ~ 730	1205 ~ 6400	187000 ~ 680000	320 ~ 1250
	29.5C	596 ~ 745	3236 ~ 7218	348000 ~ 810000	800 ~ 1600

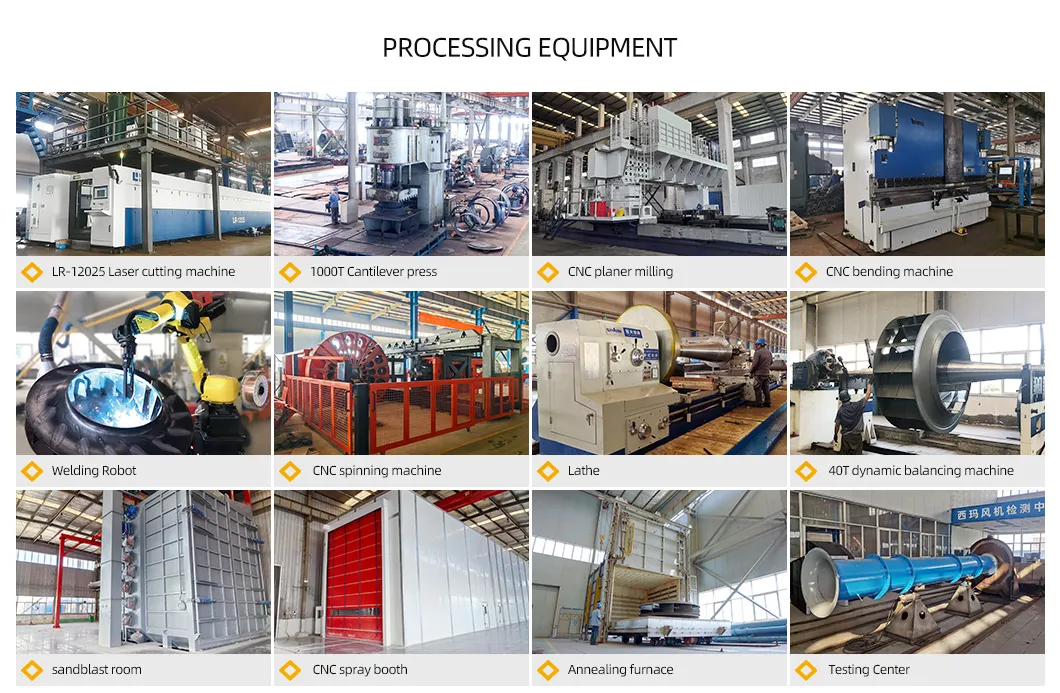

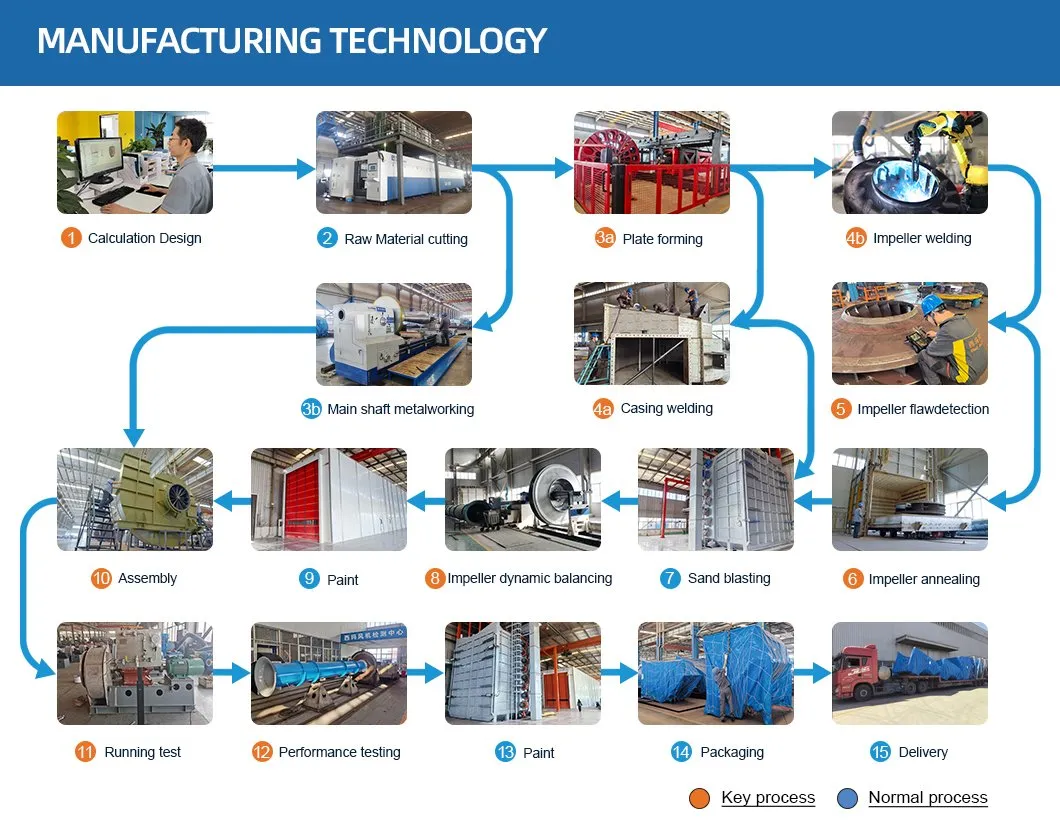

We are strict with every step about the industrial centrifugal fan and axial fan.
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure 2

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure 3

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure 4
Pursue excellent quality, make perfect product!

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure 8

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure 9

Delivery detail: 35 days after receive your payment

1. How many years your company has experience in centrifugal fan machines?

Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company's pre-sales service and after-sales service?

Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
