High Pressure Centrifugal Fan
>
Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure

Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure

Product Details:
Place of Origin: China
Brand Name: SIMO BLOWER
Certification: CE, ISO
Model Number: SIMO Blower 9-12
Detail Information
Place of Origin:
China
Brand Name:
SIMO BLOWER
Certification:
CE, ISO
Model Number:
SIMO Blower 9-12
Application:
Industrial Waste Gas Treatment
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Blade Type:
Forward
Motor:
SIEMENS/ABB/By Your Demand
Impeller:
Dynamic Balanced
Air Flow:
90-61297㎥/h
Pressure Range:
1581-10587Pa
Rotation SpeedMedium:
≤4000rpm
Feature:
High Performance Strong Suction
Impeller Support:
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung Type
Transport Package:
Standard Export Wooden Case
Production Capacity:
10, 000 Sets/Year
After-Sales Service Provided:
Field Maintenance And Repair Service
Customized Support:
ODM OEM OBM
Warranty:
1 Year
Key Words:
Centrifugal Fan Manufacturer, Custom Industrial Centrifugal Fan, Centrifugal Blower
Highlight:

High Light

Highlight:

Custom blower centrifugal fan

,

High Efficiency blower centrifugal fan

,

High Pressure blower centrifugal fan

Trading Information
Minimum Order Quantity:
≥1 set
Price:
$500-1,0000.00/set
Packaging Details:
1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement
Delivery Time:
35days (To be negotiated)
Payment Terms:
T/T, L/C, D/P
Supply Ability:
300 Set/Sets per Month centrifugal fan and axial fan manufacturer
Product Description

Customized soda ash project high pressure industrial high pressure fan lime blower

We offer customized high-pressure industrial fans designed specifically for soda ash projects. These fans provide powerful airflow and pressure, making them ideal for lime blowing systems, ensuring efficient material transport and processing. Our products are made from durable materials to withstand harsh industrial environments, guaranteeing long-term stable operation.

Product features

1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.
Performance
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-12 4D 2900 2285~2452 3297~6594 5.5~7.5
4.5D 2900 2893~3060 4695~9389 11~15
5D 2900 3570~3854 6440~12880 15~22
5.6D 2900 4482~4805 9048~18095 30~45
6.3D 1450 1422~1500 6441~12882 7.5~11
7.1D 1450 1804~1942 9220~18439 11~18.5
8D 1450 2285~2462 13189~26378 18.5~30
9D 1450 2893~3099 18779~37558 37~55
10D 1450 3570~3854 25760~42933 55~90
11.2D 960~1450 1961~4835 23961~72381 30~160
12.5D 730~960 1412~2638 25329~66620 22~90
14D 730~960 1775~3305 35586~93596 45~160
16D 730~960 2314~4295 53120~139712 75~280
Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 0

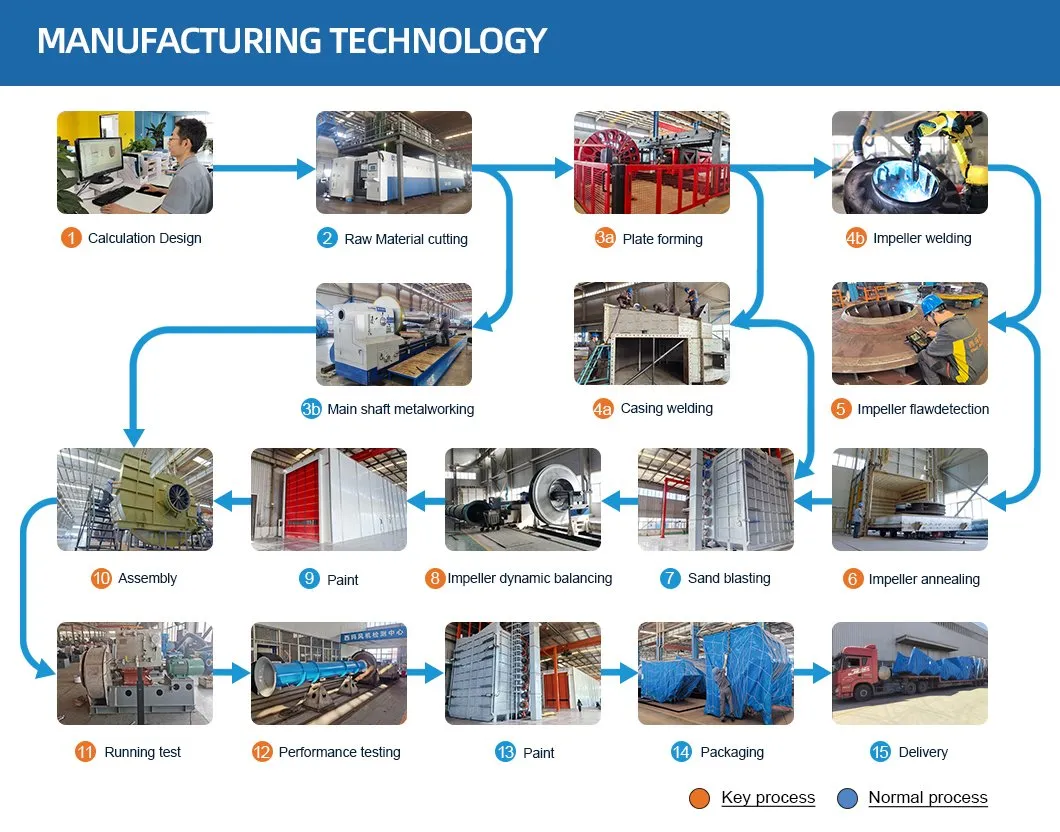

Manufacturing process

Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 1

Company Profile

Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 2Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 3
Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 4
Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 5
Pursue excellent quality, make perfect product!

Cooperating customers

Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 6

Packaging & Shipping

Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 7

FAQ

Custom Blower Centrifugal Fan Low Maintenance High Efficiency Industrial High Pressure 8
