Environmental Protection Dust Removal Supporting High Flow and Low Noise Medium Pressure Centrifugal Fan Blower

Name: Environmental Protection Dust Removal Supporting High Flow and Low Noise Medium Pressure Centrifugal Fan Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: cantrifugal fan
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SIMO BLOWER
Certification:	CE/ISO9001/ISO45001
Model Number:	cantrifugal fan

Detail Information

Place of Origin:

China

Brand Name:

SIMO BLOWER

Certification:

CE/ISO9001/ISO45001

Model Number:

cantrifugal fan

Product Name:

Environmental Protection Dust Removal Supporting High Flow And Low Noise Medium Pressure Centrifugal Fan Blower

Size:

Customized

Pressure:

Medium Pressure

Blade Material:

Stainless Steel

Category:

Blower Fan

Voltage:

380V/50Hz/60Hz

Impeller Diameter:

400-3500mm

Electric Current Type:

Speed:

≤3000rpm

Motor:

Chinese Famous Brand, ABB, Siemens, Weg Etc

Bearing Cooling:

Air Cooling Or Circulating Water Cooling

Drive:

Direct Driven, Coupling Driven, Belt Driven

Bearing Type:

Rolling Bearing

Warranty:

1year

Customized Support:

ODM OEM OBM

HS Code:

4107960701

Keywords:

Centrifugal Fan, Centrifugal Blower,Medium Pressure Centrifugal Fan

Highlight:

High Light

Highlight:

Energy Saving Centrifugal Fan Blower

High Efficiency Centrifugal Fan Blower

Medium Pressure Centrifugal Fan Blower

Trading Information

Minimum Order Quantity:

≥1 set

Price:

$500-1,0000.00/set

Packaging Details:

1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement

Delivery Time:

35days (To be negotiated)

Payment Terms:

L/C, T/T

Supply Ability:

300sets 30days

Product Description

7-08 Series High Efficiency Energy Saving Medium Pressure Centrifugal Fan Blower

Environmental Protection Dust Removal Supporting High Flow and Low Noise Medium Pressure Centrifugal Fan Blower is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.

1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

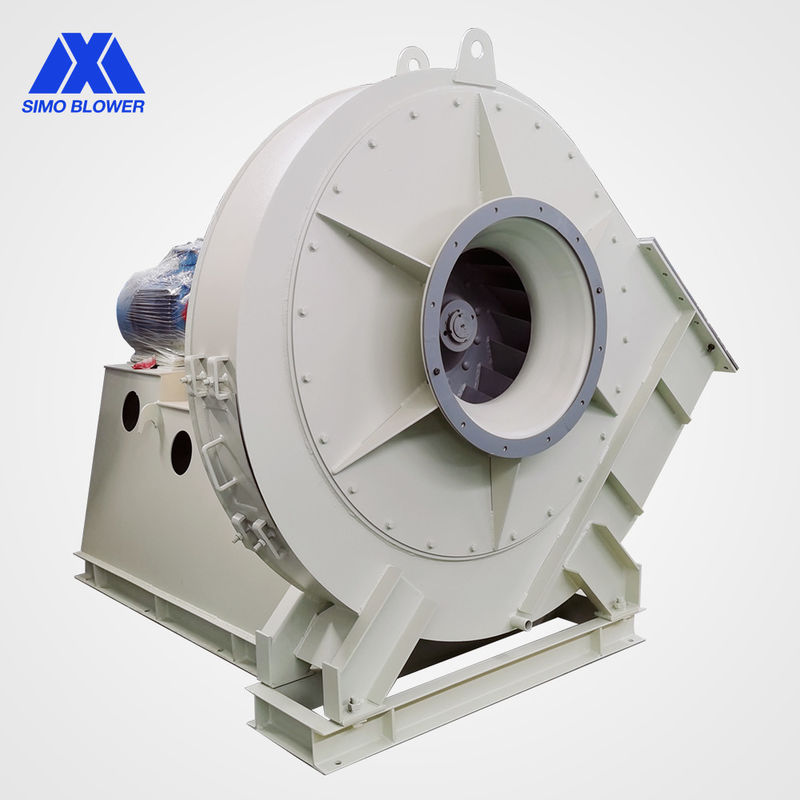

Environmental Protection Dust Removal Supporting High Flow and Low Noise Medium Pressure Centrifugal Fan Blower 1

Series no.	7-08.26 series	Feature selection
		Normal	anti-corrosion	wear-resisting		High temperature		anti-explosion	Remarks
Performance	Impeller diameter	400-3500mm
	Rotation speed	≤3000rpm
	Pressure range	3215-27349Pa
	Flow range	1049-330301㎥/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station							Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling							Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven							Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250℃		Customer request
	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas		Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc							Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel		FRP, Aluminum alloy		Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel							Can be specified
	Bearing	ZWZ, SKF, FAG, NSK							Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
