Place of Origin: | China |
Brand Name: | SIMO BLOWER |
Certification: | CE |
Model Number: | SIMO Blower 6-06 |

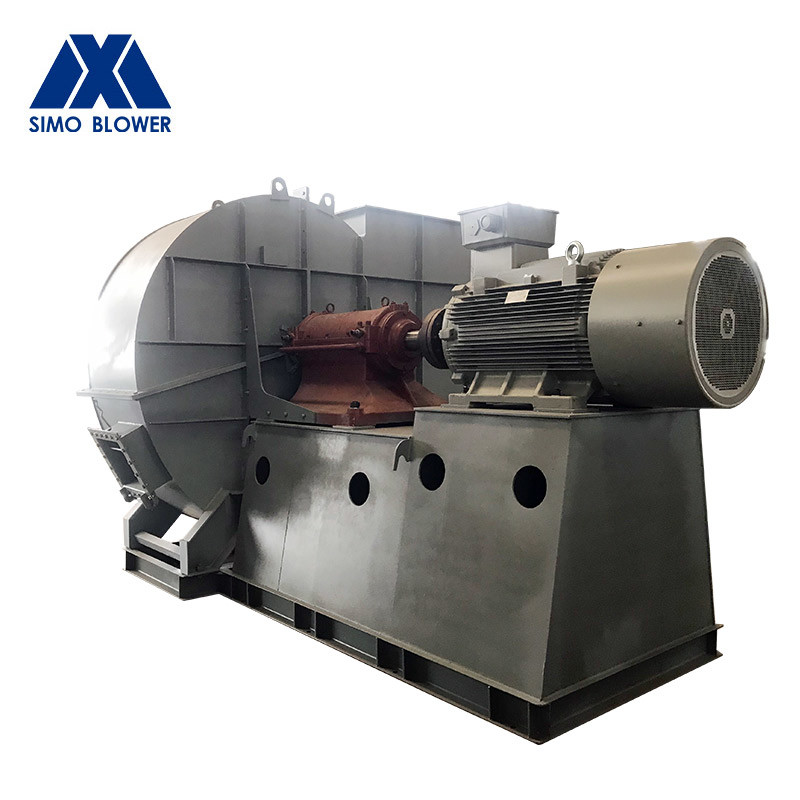

Boiler centrifugal fan centrifugal fan 18.5kw/15kw industrial induced draft fan The coal-fired boiler blower delivers flue gas or gas containing impurity particles. When the impurity concentration is less than 200mg/m3, it can be used for more than 4 years. It can be used if it contains large amounts of impurities, but its service life will be shortened. The operating temperature of the induced draft fan shall not exceed 250°C.
Boiler centrifugal fan can be made of fiberglass materials and stainless steel materials to make anti-corrosion fans for transporting corrosive gases with a certain concentration.
For transporting flammable and explosive gases, it is equipped with a cast aluminum impeller and an explosion-proof motor to make an explosion-proof fan.
Boiler centrifugal fan can use water transmission bearing seat for gas transportation greater than 80° and less than 250°. It is made of ordinary steel plate. It is recommended to use stainless steel for gas transportation greater than 250°.
As the temperature of the transported gas increases, the fan pressure of the boiler induced draft fan will change to a certain extent, and the power of the equipped motor will also change. Please consult the manufacturer for details.
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
5-11 | 16D | 1450 | 6622~9074 | 30774~61548 | 132~220 |
17D | 1450 | 7475~10242 | 36912~73825 | 220~250 | |
18D | 960~1450 | 3679~11488 | 29010~87634 | 75~315 | |
19D | 960~1450 | 4091~12802 | 34119~103066 | 90~400 | |
20D | 960~1450 | 4542~14175 | 37794~120212 | 132~560 | |
20.5D | 960~1450 | 4768~14901 | 55098~129455 | 132~630 | |
21D | 960~1450 | 5003~15637 | 46067~1093640 | 160~710 |
Industrial boilers are one of the most popular application fields of SIMO BLOWER products. SIMO BLOWER can provide a complete set of fan products, which can meet the performance requirements of industrial boiler systems such as 1~450T coal-fired boilers, biomass boilers, and waste incineration boilers.
SIMO BLOWER can be used by industrial boiler fan users: coal-fired boiler fans, biomass fuel boiler fans, waste incineration boiler fans, industrial boiler induced draft fans (FD fans), induced draft fans (ID fans), primary fans (PA fan), secondary fan (SA fan), and flue gas dedusting fan, flue gas desulfurization fan (FGD fan), flue gas denitrification fan, etc.
