|Place of Origin:||Henan China|
|Model Number:||SIMO Blower 4-09|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Wooden Case Packing, Steel pallet Packing|
|Delivery Time:||15-35 Days|
|Payment Terms:||T/T, L/C, Payment Term Is Negotiable|
|Supply Ability:||500 Sets Per Month|
|Type:||Centrifugal Fan||Product Name:||Single Inlet Centrifugal Fan For Boiler|
|Total Pressure:||198~3200Pa||Medium Temperature:||0~80℃|
|Year Of Inception:||1955||Company Type:||Manufacturer|
|Electric Current Type:||AC||Package:||Wooden Cases|
single inlet centrifugal blower for Boiler,
Single Inlet Centrifugal Fan for Boiler,
Single Inlet Centrifugal Fan suction

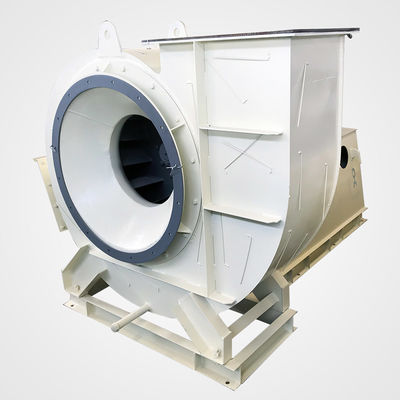

1. Applications for Single Inlet Centrifugal Fan for Boiler
4-72-NO10C/30KW Centrifugal Ventilator Channel Blower Kiln Dust Exhaust Ventilation
The 4-72 centrifugal fan is used as indoor ventilation for general factories and large buildings. It can be used as input gas or output gas. Air and other gases that are not spontaneously combustible, harmless to the human body, and non-corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in it are not more than 150mg/m3. Gas temperature: no more than 80°C.
The 4-72 centrifugal fan is the earliest fan used in my country, but it is also the most common fan. From high-rise buildings to underground railways, from boiler blasting to factory ventilation, 4-72 fans can be seen everywhere .
☆Type of fan
Viewed from the side of the motor, the impeller that rotates clockwise is called a right-handed fan, which is represented by "right"; the impeller that rotates counterclockwise is called a left-handed fan, which is represented by "left".
The outlet position of the fan is expressed by the angle of the air outlet of the casing. 4-72 type fans №2.8～6 are all made into one type when they leave the factory, and the user can install them in the required position according to the requirements, and there is no need to specify when ordering. Among them, the adjustment range of the air outlet position of №2.8 is 0°～255°, and the interval is 45°; the air outlet positions of №16 and 20 are made into three fixed positions of 0°, 90°, and 180°, which cannot be adjusted, and must be specified when ordering .
There are four kinds of fan transmission modes: A, B, C, and D: among the 4-72 type fans, №2.8~6 adopts A type transmission, №8~12 adopts C and D type transmission, and №16~20 adopts B type transmission .
☆The structure of the fan
№2.8～6 of the 4-72 type fan is mainly composed of impeller, casing, air inlet, motor and other parts. №8～20 has not only the above-mentioned parts, but also a transmission part.
(1) Impeller: It is composed of 10 backward inclined airfoil blades, a curved front disc and a flat rear disc. It is made of steel plate and has been corrected by dynamic and static balance. The air performance is good, accurate and the operation is stable.
(2) Shell: made into two different types. Among them, the casings of №2.8～12 are made as a whole and cannot be disassembled. The casings of №16～20 are made into three open types. In addition to being divided into two halves along the middle horizontal plane, the upper half is vertically divided into two halves along the center line. , connected with bolts.
(3) Air inlet: It is made as a whole and installed on one side of the fan. The section parallel to the axial direction is a curved switch. The function is to make the airflow enter the impeller smoothly, and the loss is small.
(4) Transmission: It consists of a main shaft, a bearing box, a flow bearing, a pulley or a coupling.
Flow rate: 20~500m3/s, pressure range: 2000~20000 PA, gas temperature is 200℃.
3. the main purpose
Widely used in boiler ventilation, energy recovery, environmental dust removal, desulfurization and denitration conditions. "
