Industrial Centrifugal Fans
>

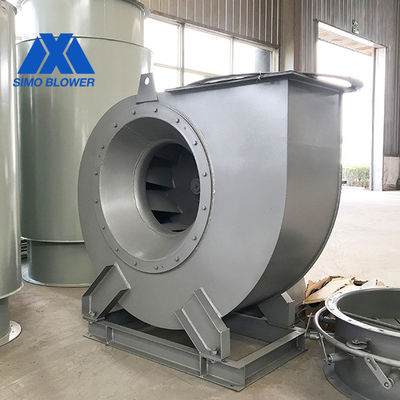

440V 660V 6KV 10KV Industrial Centrifugal Fans 4-72 High Temperature Resistant

440V 660V 6KV 10KV Industrial Centrifugal Fans 4-72 High Temperature Resistant

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-10
Model NO:
4-72 3.2A~20B
Specification:
2021x2475x1931
Origin:
China
Voltage:
380V/415V/440V/660V/6KV/10KV
Power Source:
Three Phase AC Motor
Bearing Type:
Rolling Bearing
OEM Service:
Provide
Name:
Industrial Boilers FD Fan
Impeller Testing:
Dynamic Blancing Adjusting
High Light:

High Light

High Light:

Industrial Centrifugal Fans High Temperature Resistant

,

10KV Industrial Centrifugal Fans

,

660V Industrial blower Fans

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

4-72 Ducted Centrifugal, 4-72 High-Temperature Resistant Fan Blowers

Product description



4-72 Ducted Centrifugal, 4-72 High-Temperature Resistant Fan Blowers Use The 4-72 centrifugal fan can be used for indoor ventilation in general factories and large buildings, conveying air and other gases that are not spontaneously combust, are harmless to the human body, and are non-corrosive to copper.The model 4-72 centrifugal ventilator can be used for indoor ventilation in general factories and large buildings, which can transport air and other gases that is not self-igniting, harmless to the human body, and non-corrosive to steel. No viscous substances are allowed in the gas. The dust and hard particles contained in the gases shall not be larger than 150mg/m3 and the gas temperature must not exceed 80 °C.



Product parameter

Model No 4-72 3.2A~20B
Use Smoke and dust removal
Voltage 380V/400V/415V/440V/450V/660V/1140V
Color Blue/Red/White/Gray/Yellow/Customized
Application Industries Steel Mill/Textile, Chemical, Smelting, Petroleum, Kiln, and Many Factories
Specification Can provide according to customer's requirements sizes
Brand Name SIMO
Power 18.5~1600KW
Rotating Speed 2900~450rpm
Total Pressure 270~3100Pa
Airflow 840~22100M3/h
Package Wooden Box/Steel frame
Temperature Resistance -40~350 Degrees
Material SS304, SS316 and Q235
Frequency 50Hz/60Hz
Impeller Type Backward/Forward/Radial Blade
After-Sales Service Field Installation, Commissioning, and Training
Efficiency(%) Over 90%
Exported to All Countries
Warranty 18 Months



company introduction

440V 660V 6KV 10KV Industrial Centrifugal Fans 4-72 High Temperature Resistant 0

Xinxiang SIMO BLOWER Limited Company which was founded in 1995, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
