Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-08 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Application: | Industrial/ Explosion Resistant | Mounting Types: | Base Mounted |
---|---|---|---|
Operating Temperature: | -20 ~ 450 ℃ | Drive Types: | Anti-Corrosion Blower |
Blades: | 12 | Material: | Carbon Steel |
High Light: | AC Motor Industrial Centrifugal Fans,Industrial Centrifugal Fans Heat Dissipation,Industrial Centrifugal Fans 16Mn |

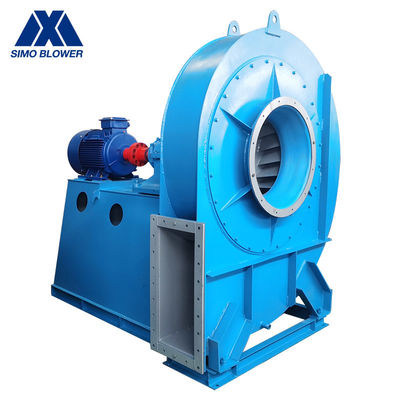

Introduction
Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.
The new shaft and coupling technology ensuring the accuracy during the assembly process while maintaining high reliability.
All our machines underwent vibration tests prior leaving the factory in order to achieve reliable and durable operation.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-08 | 8D | 1450 | 1859~2745 | 11000~26400 | 15 ~ 22 |
9D | 1450 | 2353~3474 | 15700~37500 | 30 ~ 45 | |
10D | 1450 | 2905~4289 | 21500~51500 | 45 ~ 75 | |
11D | 960 ~ 1450 | 1541~5190 | 22700~68500 | 22 ~ 110 | |
12D | 960 ~ 1450 | 1834~6176 | 24600~89000 | 37 ~ 160 | |
13D | 960 ~ 1450 | 2152~7248 | 31200~113000 | 55 ~ 250 | |
14D | 960 ~ 1450 | 2496~8406 | 39000~141000 | 75 ~ 400 | |
15D | 730 ~ 1450 | 1657~9650 | 36600~172000 | 45 ~ 500 | |
16D | 730 ~ 1450 | 1885~10980 | 44300~211000 | 75 ~ 710 | |
17D | 730 ~ 960 | 2128~5433 | 53200~168000 | 90 ~ 280 | |
18D | 730 ~ 960 | 2386~6091 | 63100~199000 | 110 ~ 355 | |
19D | 730 ~ 960 | 2658~6787 | 74200~234000 | 160 ~ 500 | |
20D | 730 ~ 960 | 2946~7520 | 86700~273000 | 200 ~ 630 | |
21D | 580 ~ 960 | 2050~8290 | 79500~316000 | 200 ~ 800 | |
22D | 580 ~ 960 | 2250~9099 | 92200~363000 | 220 ~ 1000 | |
23.5D | 580 ~ 960 | 2567~10380 | 112000~443000 | 220 ~ 1400 | |
25D | 580 ~ 730 | 6794~6464 | 134000~406000 | 355 ~ 800 | |
26.5D | 480 ~ 730 | 2236~7633 | 132000~483000 | 220 ~ 1120 | |
28D | 480 ~ 730 | 2496~8522 | 156000~569000 | 315 ~ 1400 | |
29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000~667000 | 400 ~ 2000 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
