Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 9-10 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Voltage: | 380V/415V/440V/660V/6KV/10KV | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
---|---|---|---|
Impeller: | Dynamic Balanced | Delivery Time: | 30 Days |
Noise: | Optional | Electric Current Type: | AC |
High Light: | Lime Rotary Kiln Centrifugal Fan,SWSI Wear Resistant Centrifugal Fan,10KV Centrifugal Ventilation Fans |

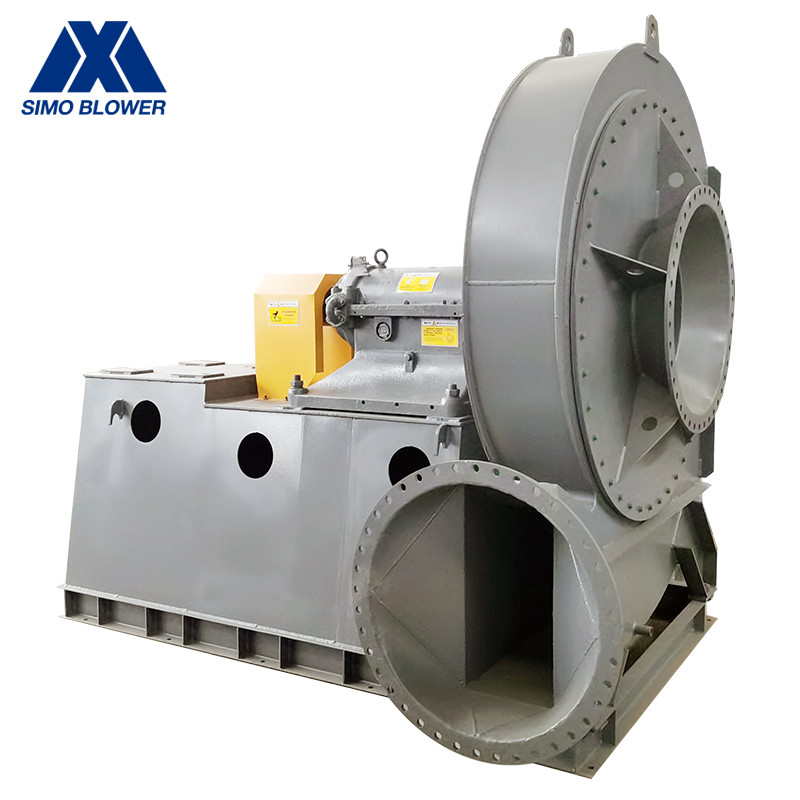

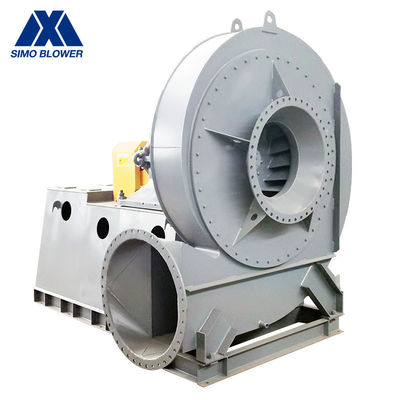

Lime Rotary Kiln High Pressure Centrifugal Fan Wear Resistant
Introduction
The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
The fan housing shall be made in steel and its thickness and strength should be able to withstand the maximum running weight of the fan. The volute shall be continuously welded and equipped with access door for removing possible foreign objects entered into the scroll.
Detail introduction
Fan inlet shall be aerodynamic design round curved section to transit the air to the wheel cone smoothly, it shall have good commutated effect to reduce turbulence, improve fan efficiency and reduce noise.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
9-10 | 8D | 1450~2900 | 3231~15034 | 3297~14287 | 7.5~110 |
9D | 1450 | 4101~4597 | 4695~10717 | 15~22 | |
10D | 1450 | 4958~5840 | 6440~15455 | 30~37 | |
11.2D | 960~1450 | 2705~7364 | 5990~21713 | 15~75 | |
12.5D | 960~1450 | 3975~9229 | 8327~30186 | 22~110 | |
14D | 960~1450 | 4249~11668 | 11699~42409 | 37~220 | |
16D | 960~1450 | 5575~15425 | 17463~63305 | 75~315 |
Product Features
The fan shall be single-inlet with steel backward curved centrifugal wheel. The drive type shall be direct drive, coupling drive and belt drive. Structure of the fan shall be undone easily for maintenance and cleaning.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
