HG785 Alloyed Steel High Pressure Centrifugal Fan Induced Draft

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Voltage: 380V/415V/440V/660V/6KV/10KV Motor Type: Three Phase AC Motor
Bearing: SKF/FAG/By Your Demand Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Delivery Time: 30 Days
High Light:

HG785 Alloyed Steel Centrifugal Fan

,

1450r/min Induced Draft Blower

,

440V High Pressure Centrifugal Fan

HG785 Alloyed Steel High Pressure Centrifugal Fan Induced Draft



Introduction



The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

The impeller is made of 12 sloped wing beveled blades, arc-conical front plate and flat-shaped rear plate welded together. The material is made of heat-resistant stainless steel. Impeller dynamic and static balance and overspeed test.



Detail introduction



The outlet position of the fan is represented as "left" by the outlet Angle of the housing, and "right" can be made into five angles: 0°, 45° 90°, 135°180°.The new shaft and coupling technology ensuring the accuracy during the assembly process while maintaining high reliability.All our machines underwent vibration tests prior leaving the factory in order to achieve reliable and durable operation.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 8D 14502900 323115034 329714287 7.5110
9D 1450 41014597 469510717 1522
10D 1450 49585840 644015455 3037
11.2D 9601450 27057364 599021713 1575
12.5D 9601450 39759229 832730186 22110
14D 9601450 424911668 1169942409 37220
16D 9601450 557515425 1746363305 75315


Product Features



The fan shall be single-inlet with steel backward curved centrifugal wheel. The drive type shall be direct drive, coupling drive and belt drive. Structure of the fan shall be undone easily for maintenance and cleaning.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

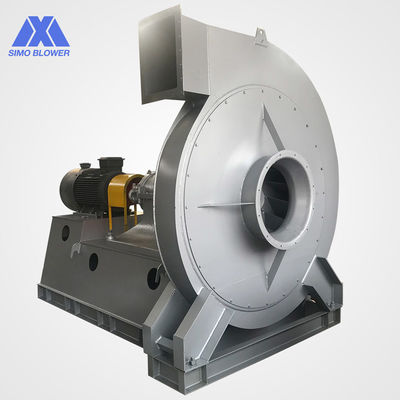

HG785 Alloyed Steel High Pressure Centrifugal Fan Induced Draft 0
