High Pressure Centrifugal Fan
>
75KW Heavy Duty Industrial Anti Explosion High Pressure Centrifugal Fan

75KW Heavy Duty Industrial Anti Explosion High Pressure Centrifugal Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-10
Application:
Industrial Ventilation
Mounting:
Free Standing
After-sales Service Provided:
Field Installation, Commissioning And Training
Voltage:
380V/415V/440V/660V/6KV/10KV
Drivetrain:
Coupling Driven
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
High Light:

High Light

High Light:

Anti Explosion High Pressure Centrifugal Fan

,

75KW High Pressure Centrifugal Fan

,

Anti Explosion Dust Extraction Fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

75KW Heavy Duty Industrial Anti-Explosion High Pressure Centrifugal Fan



Introduction Of Centrifugal Fan



The 9-10 series high pressure radial blower is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 8D 14502900 323115034 329714287 7.5110
9D 1450 41014597 469510717 1522
10D 1450 49585840 644015455 3037
11.2D 9601450 27057364 599021713 1575
12.5D 9601450 39759229 832730186 22110
14D 9601450 424911668 1169942409 37220
16D 9601450 557515425 1746363305 75315


Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1.The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.

2. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

3. It’s a high-performance product promoted by the State Economic Commission and the Ministry of Machinery Industry.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

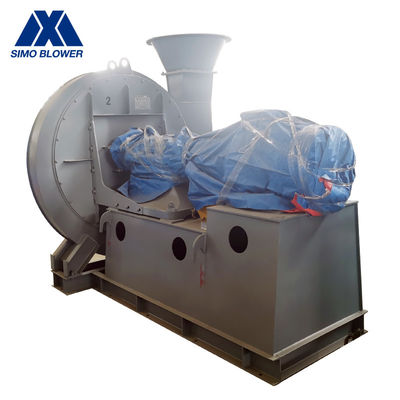

75KW Heavy Duty Industrial Anti Explosion High Pressure Centrifugal Fan 0
