Q235 Single Suction High Air Flow High Pressure Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Current Type: AC
After-sales Service Provided: Field Installation, Commissioning And Training Motor: SIEMENS/ABB/By Your Demand
Drivetrain: Coupling Driven Warranty: 1 Year
High Light:

Q235 High Pressure Centrifugal Fan

,

Single Suction High Pressure Centrifugal Fan

,

High Air Flow Centrifugal Fan

Q235 Single Suction High Air Flow High Pressure Centrifugal Fan



Introduction Of Centrifugal Fan



The 9-08 series high static pressure blower is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

It can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 7.1D 2900 1063512427 1229219360 75110
8D 14502900 324915955 879227696 18.5200
9D 1450 41814869 1251819717 3045
10D 1450 50656143 1717230052 5575
11.2D 9601450 30317747 1597342221 30132
12.5D 9601450 34509713 2220658695 45250
14D 9601450 434112285 3119782463 75400
16D 9601450 569616250 46569123090 185850



Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1.The fan can output very high pressure, suitable for any need to transport high pressure & normal temperature gas industrial occasions.

2. The fan blade, casing and frame are made of FRP material, which has the characteristics of high efficiency, low noise, stable operation and convenient installation. FRP axial flow fan is suitable for general factory, office, warehouse, residential ventilation and arousal.

3. The structure reduces the flow loss and thus the fan efficiency is exported.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

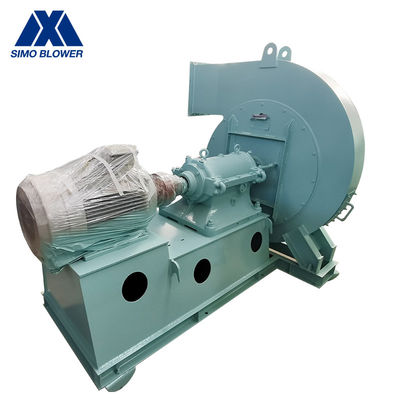

Q235 Single Suction High Air Flow High Pressure Centrifugal Fan 0

Q235 Single Suction High Air Flow High Pressure Centrifugal Fan 1

Q235 Single Suction High Air Flow High Pressure Centrifugal Fan 2
