5-12 series electric arc furnace exhaust purification centrifugal fan induced draft fan

Name: 5-12 series electric arc furnace exhaust purification centrifugal fan induced draft fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 5-12
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	Henan China
Brand Name:	SIMO

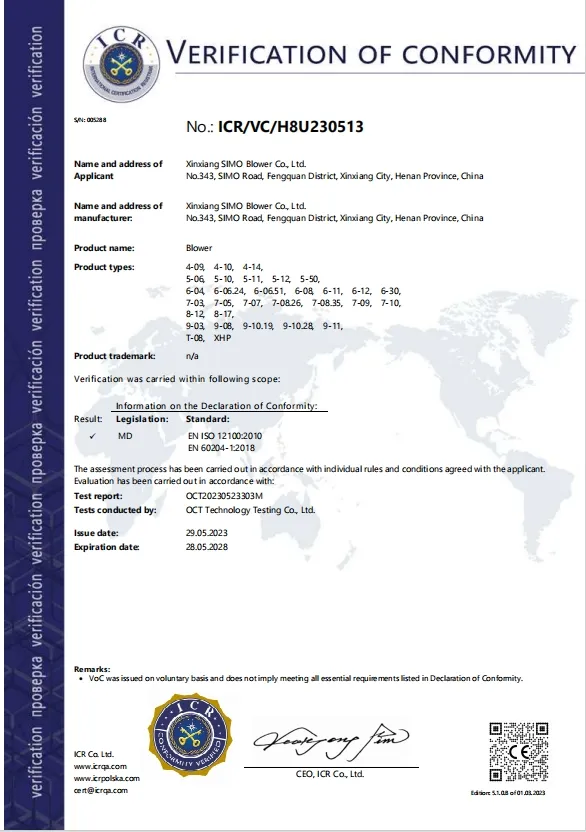

Certification:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 5-12

Detail Information

Place of Origin:

Henan China

Brand Name:

SIMO

Certification:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 5-12

Application:

Industrial Exhaust Ventilation

Main Shaft:

High-strength Carbon Structural Steel

Motor Type:

Three Phase AC Motor

Material:

Stainless Steel

Delivery Time:

30 Days

Color:

Customer's Requirement

Customized Support:

ODM OEM OBM

Mounting:

FREE STANDING

Warranty:

1 Year

Keyword:

Blowers,Industrial Fan,High Efficiency Centrifugal Blower,Induced Draft Fan

Highlight:

High Light

Highlight:

long lifetime heavy duty centrifugal fans

backward heavy duty centrifugal fans

lime kiln heavy duty centrifugal fans

Trading Information

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

L/C, D/P, T/T

Supply Ability:

300sets 30days

Product Description

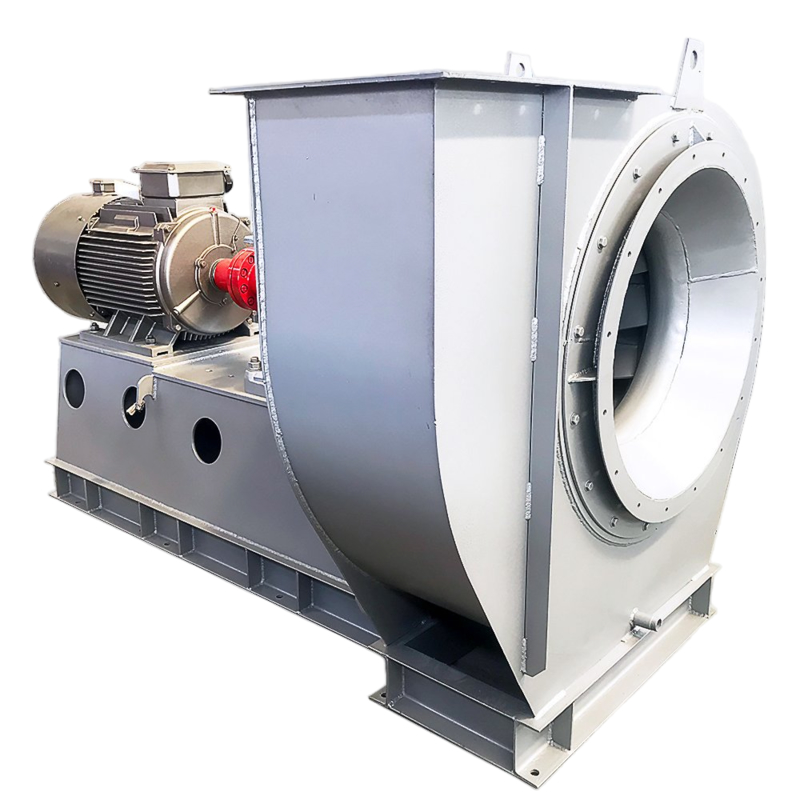

5-12 series electric arc furnace exhaust purification centrifugal fan induced draft fan 0

Detail introduction :

Mainly to meet the dust emission requirements of the electric arc furnace exhaust gas purification equipment, improve the workshop environment, to ensure that the dust concentration in the electric furnace working area meets the "sanitary standards for industrial enterprises", and can also be used in various occasions with the same functional requirements.

The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.

Mainly circulating fluidized bed system, smoke exhaust, material drying, industrial dust collector / filtration system, flue gas desulfurization, flue gas denitrification, industrial boiler induced air, cement production line, industrial waste heat recovery device, mineral powder sintering ( sintering machine), Coke production (coking furnace), etc, is especially suitable for various harsh conditions such as high temperature, wear and corrosion.

5-12 series electric arc furnace exhaust purification centrifugal fan induced draft fan 1

Specification

Series no.	5-12series	Feature selection
Series no.	5-12series	Normal	anti-corrosion	wear-resisting	High temperature	anti-explosion	Remarks
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590-700735m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station					Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling					Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven					Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250℃	Customer request
Gas composition	gascharacteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas	Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc					Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel	FRP, Aluminum alloy	Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel					Can be specified
	Bearing	ZWZ, SKF, FAG, NSK					Can be specified

5-12 series electric arc furnace exhaust purification centrifugal fan induced draft fan 2

Product features :

1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.

2. The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.

5. Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.

6. The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.

7. The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

8. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

9. After the production is completed, all products are tested for running and vibration values for reliable operation.

Please provide the fan operating conditions and parameter information, and the business manager will give you a quote
