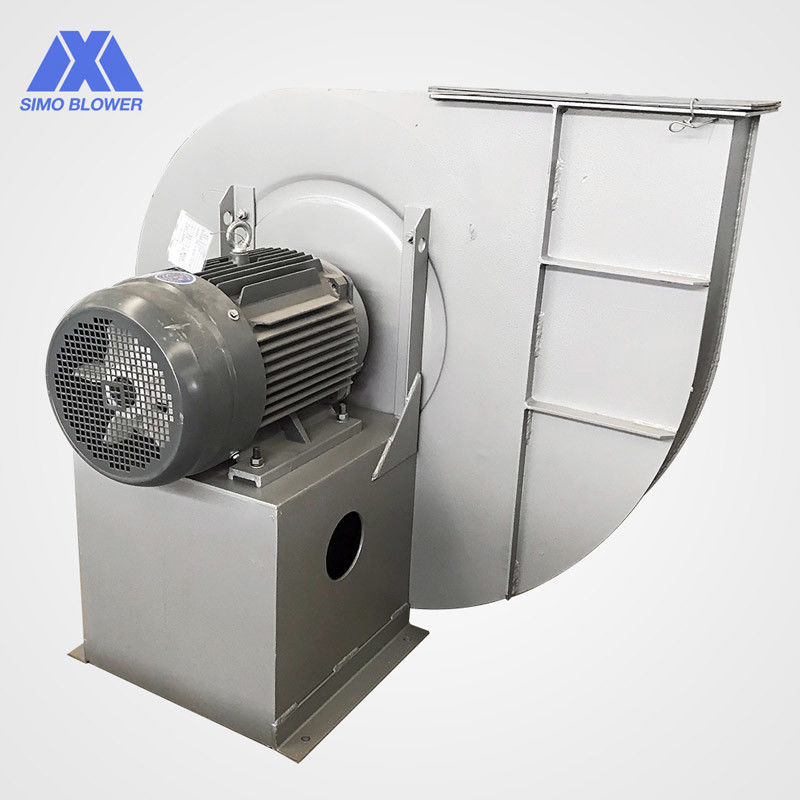

Large Capacity Aluminium Alloyed Drying Industrial Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Feature: High Performance Blade: Forward / Backward/Backward Curved
Impeller Test: Ultrasonic Flaw Detection Bearing: SKF/FAG/By Your Demand
Category: Blower Electric Current Type: AC
High Light:

large capacity industrial centrifugal fans

,

aluminium alloyed industrial centrifugal fans

,

drying industrial centrifugal blower

Large Capacity Aluminium Alloyed Drying Industrial Centrifugal Fans



Introduction Of Centrifugal Fan



Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-08 2.5A 2800 1155451 4031043 0.55
3.3A 2825 1936954 10902301 1.1
5.4A 1420 1254994 21304358 3
6.4A 1440 18111436 35967358 5.5
7.1A 1440 22701697 534910354 7.5
8.5A 1470 33912535 936918137 18.5


Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1. The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.

2. Made of high quality carbon steel, stainless steel or other metal materials are available upon request.

3. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

Large Capacity Aluminium Alloyed Drying Industrial Centrifugal Fans 0

Large Capacity Aluminium Alloyed Drying Industrial Centrifugal Fans 1

Large Capacity Aluminium Alloyed Drying Industrial Centrifugal Fans 2
