Q345 V Belt Driving Heat Dissipation Industrial Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Feature: High Performance Mounting: Free Standing
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Bearing: SKF/FAG/By Your Demand
Category: Blower Medium: Clean Air/Dusty Air
High Light:

q345 industrial centrifugal fans

,

v belt driving industrial centrifugal fans

,

heat dissipation industrial centrifugal blower

Q345 V-Belt Driving Heat Dissipation Industrial Centrifugal Fans



Introduction Of Centrifugal Fan



The 6-06 series boiler fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.

It’s a widely used medium-pressure heavy-duty centrifugal fan, which is commonly used in industrial systems such as boilers, dust collectors, desulfurization systems, cement, chemicals, metallurgy, electric power, and gas and material transportation. It can also be used for general ventilation.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-06 8C 1450 18592745 1100026400 15 ~ 22
9C 1450 23533474 1570037500 30 ~ 45
10C 1450 29054289 2150051500 45 ~ 75
11C 960 ~ 1450 15415190 2270068500 22 ~ 110
12C 960 ~ 1450 18346176 2460089000 37 ~ 160
13C 960 ~ 1450 21527248 31200113000 55 ~ 250
14C 960 ~ 1450 24968406 39000141000 75 ~ 400
15C 730 ~ 1450 16579650 36600172000 45 ~ 500
16C 730 ~ 1450 188510980 44300211000 75 ~ 710
17C 730 ~ 960 21285433 53200168000 90 ~ 280
18C 730 ~ 960 23866091 63100199000 110 ~ 355
19C 730 ~ 960 26586787 74200234000 160 ~ 500
20C 730 ~ 960 29467520 86700273000 200 ~ 630
21C 580 ~ 960 20508290 79500316000 200 ~ 800
22C 580 ~ 960 22509099 92200363000 220 ~ 1000
23.5C 580 ~ 960 256710380 112000443000 220 ~ 1400
25C 580 ~ 730 67946464 134000406000 355 ~ 800
26.5C 480 ~ 730 22367633 132000483000 220 ~ 1120
28C 480 ~ 730 24968522 156000569000 315 ~ 1400
29.5C 480 ~ 730 2771 ~ 9460 183000667000 400 ~ 2000



Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.

2.The induced draft fan is made into a single suction, different impeller diameter from 400mm to 3000mm.

3.The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

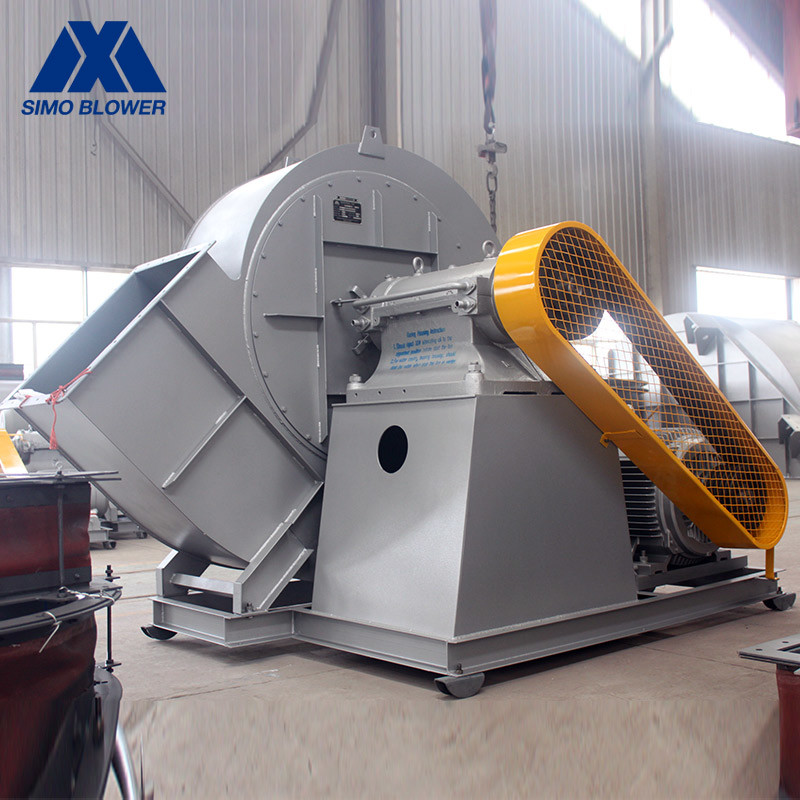

Q345 V Belt Driving Heat Dissipation Industrial Centrifugal Fans 0
