High Pressure Centrifugal Fan
>
High Temperature High Air Flow Gas Delivery High Pressure Centrifugal Fan

High Temperature High Air Flow Gas Delivery High Pressure Centrifugal Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 7-08
Application:
Industrial Ventilation
Drivetrain:
Direct/Coupling Driven/V-belt Driven
Mounting:
Free Standing
Material:
Carbon Steel/Alloy Steel/Stainless Steel
Impeller:
Dynamic Balanced
Current Type:
AC
High Light:

High Light

High Light:

Air Flow High Pressure Centrifugal Fan

,

High Temperature High Pressure Centrifugal Fan

,

Gas Delivery high pressure centrifugal blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

High Temperature High Air Flow Gas Delivery High Pressure

Centrifugal Fan



Introduction Of Centrifugal Fan



The 7-08.26 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It belongs to small flow and medium pressure series.

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

The current collector and impeller front plate are processed by advanced spinning process and ensure precision.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
7-08 5D 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6D 2360 26232264 49099817 11
7.1D 1830 ~ 2450 2188 ~ 3862 775720771 15 ~ 30
8D 1910 35173034 1158223164 30
9D 1570 30022591 1355527111 30
10D 1470 ~ 1650 2806 ~ 4109 17410 36478 45 ~ 55


Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.

2. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.

3. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

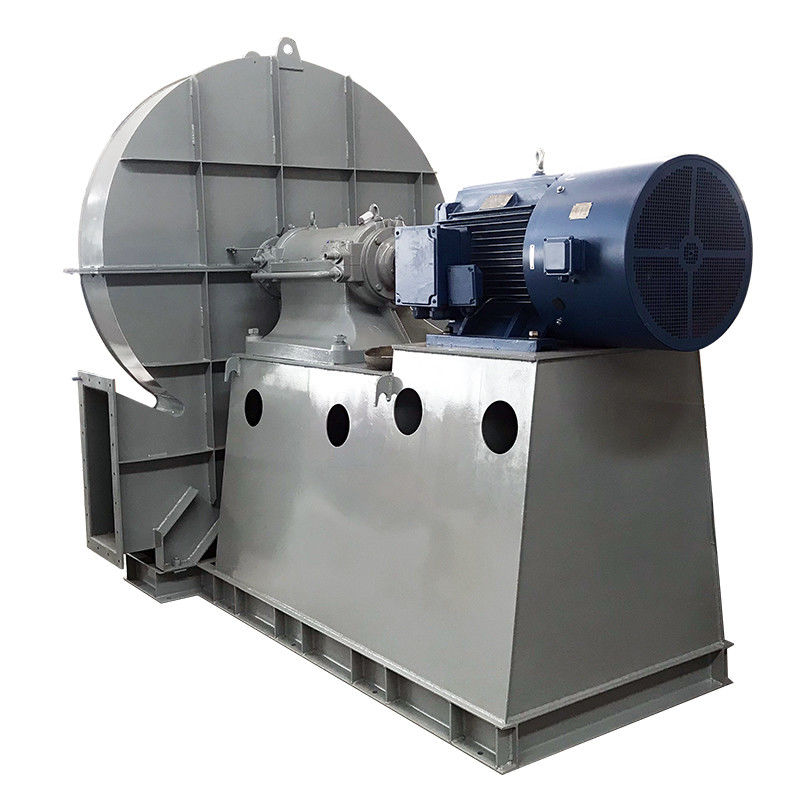

High Temperature High Air Flow Gas Delivery High Pressure Centrifugal Fan 0
