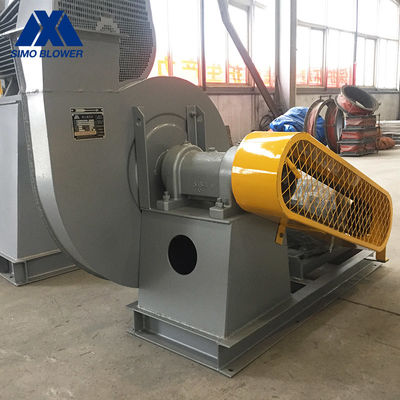

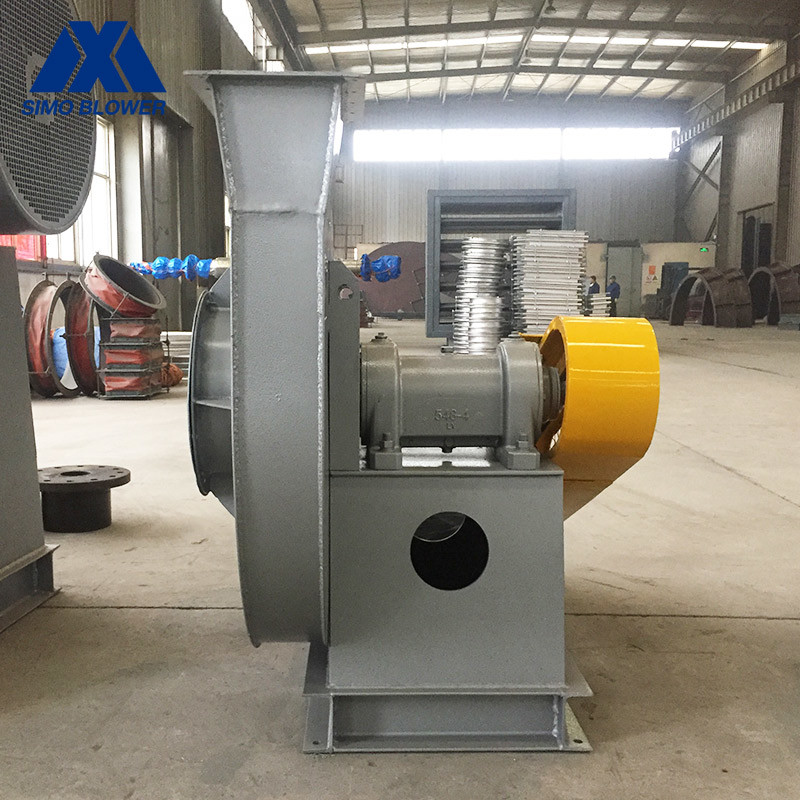

16Mn V-Belt Driven Backward Cement Kiln High Pressure Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Drivetrain: Direct/Coupling Driven/V-belt Driven
Bearing Cooling: Air Cooling Or Circulating Water Cooling Main Shaft: High-strength Carbon Structural Steel
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Warranty: 1 Year
High Light:

Cement Kiln High Pressure Blower Fan

,

16Mn High Pressure Blower Fan

,

16Mn High Pressure Centrifugal Fan

16Mn V-Belt Driven Backward Cement Kiln High Pressure Centrifugal Fan



Introduction Of Centrifugal Fan



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The fan with explosion-proof motor, and its performance parameters are the same as those ordinary motors.

The fan has high efficiency, low noise, flat performance curve and wide area of high efficiency.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 7.1C 2900 1063512427 1229219360 75110
8C 14502900 324915955 879227696 18.5200
9C 1450 41814869 1251819717 3045
10C 1450 50656143 1717230052 5575
11.2C 9601450 30317747 1597342221 30132
12.5C 9601450 34509713 2220658695 45250
14C 9601450 434112285 3119782463 75400
16C 9601450 569616250 46569123090 185850


Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

2. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

3. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.



16Mn V-Belt Driven Backward Cement Kiln High Pressure Blower Fan 0

16Mn V-Belt Driven Backward Cement Kiln High Pressure Blower Fan 1
