|Place of Origin:||Henan China|
|Model Number:||SIMO Blower 6-06|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Wooden Case Packing, Steel pallet Packing|
|Delivery Time:||15-35 Days|
|Payment Terms:||T/T, L/C, Payment Term Is Negotiable|
|Supply Ability:||500 Sets Per Month|
|After-sales Service Provided:||Field Installation, Commissioning And Training||Drivetrain:||Direct/Coupling Driven/V-belt Driven|
|Bearing Cooling:||Air Cooling Or Circulating Water Cooling||Category:||Blower|
|Electric Current Type:||AC||Voltage:||380V/415V/440V/660V/6KV/10KV|
Rotary Kiln Industrial Centrifugal Fans,
Carbon Steel Industrial Centrifugal Fans,
Cement Kiln Industrial Centrifugal Fans

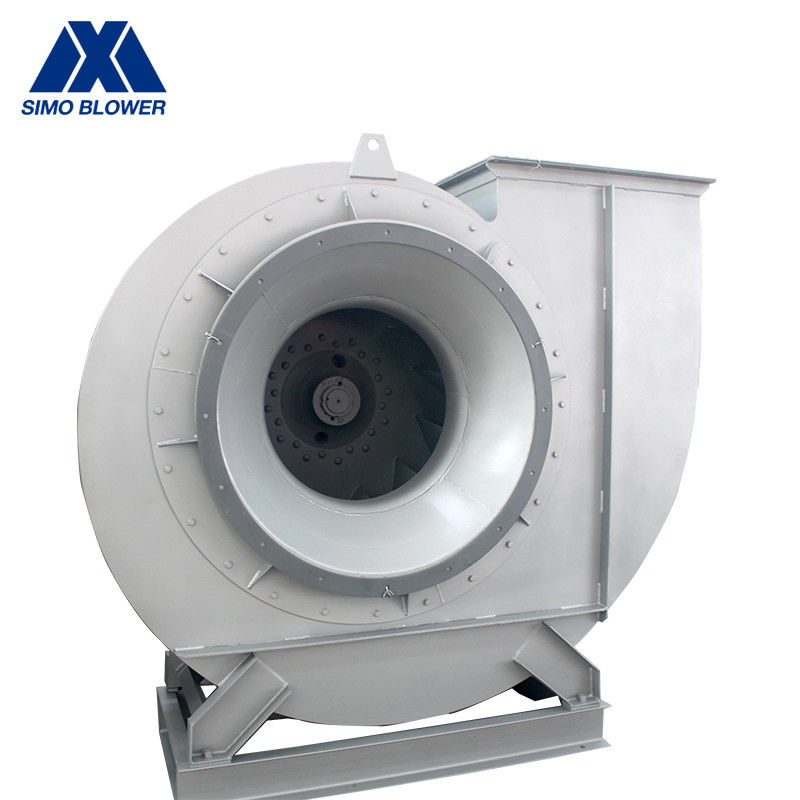

Large Capacity Carbon Steel Cement Rotary Kiln Industrial
Introduction Of Centrifugal Fan
The 6-06 series boiler fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.
This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.
|6-06||8D||1450||1859～2745||11000～26400||15 ~ 22|
|9D||1450||2353～3474||15700～37500||30 ~ 45|
|10D||1450||2905～4289||21500～51500||45 ~ 75|
|11D||960 ~ 1450||1541～5190||22700～68500||22 ~ 110|
|12D||960 ~ 1450||1834～6176||24600～89000||37 ~ 160|
|13D||960 ~ 1450||2152～7248||31200～113000||55 ~ 250|
|14D||960 ~ 1450||2496～8406||39000～141000||75 ~ 400|
|15D||730 ~ 1450||1657～9650||36600～172000||45 ~ 500|
|16D||730 ~ 1450||1885～10980||44300～211000||75 ~ 710|
|17D||730 ~ 960||2128～5433||53200～168000||90 ~ 280|
|18D||730 ~ 960||2386～6091||63100～199000||110 ~ 355|
|19D||730 ~ 960||2658～6787||74200～234000||160 ~ 500|
|20D||730 ~ 960||2946～7520||86700～273000||200 ~ 630|
|21D||580 ~ 960||2050～8290||79500～316000||200 ~ 800|
|22D||580 ~ 960||2250～9099||92200～363000||220 ~ 1000|
|23.5D||580 ~ 960||2567～10380||112000～443000||220 ~ 1400|
|25D||580 ~ 730||6794～6464||134000～406000||355 ~ 800|
|26.5D||480 ~ 730||2236～7633||132000～483000||220 ~ 1120|
|28D||480 ~ 730||2496～8522||156000～569000||315 ~ 1400|
|29.5D||480 ~ 730||2771 ~ 9460||183000～667000||400 ~ 2000|
1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.
2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.
3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.
It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.If it contains large impurities, it also can be used, but the service life is relatively shortened.
The maximum temperature used for the fan does not exceed 250°C.
It has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
