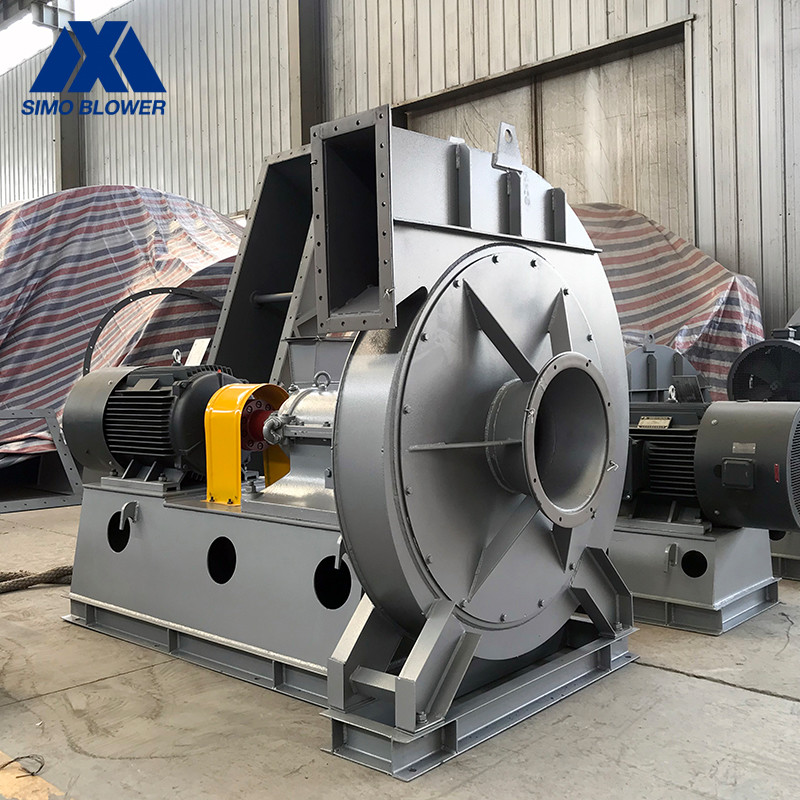

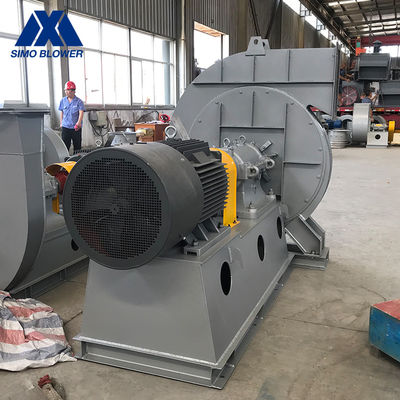

AC Dynamic Balanced Overhang Industrial Centrifugal Fans
Dynamic Balanced Industrial Centrifugal Fans
,Overhang Industrial Centrifugal Fans
,3030r/min Industrial Centrifugal Fans
Q235 High Pressure Heat Dissipation Industrial Centrifugal Fans
Introduction
The 7-03 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company.
The current collector and impeller front plate are processed by advanced spinning process and ensure precision.V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 7-03 | 5D | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6D | 2360 | 2623～2264 | 4909～9817 | 11 | |
| 7.1D | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 | |
| 8D | 1910 | 3517～3034 | 11582～23164 | 30 | |
| 9D | 1570 | 3002～2591 | 13555～27111 | 30 | |
| 10D | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Advantages and Features
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
-
-
-
-
-
-
