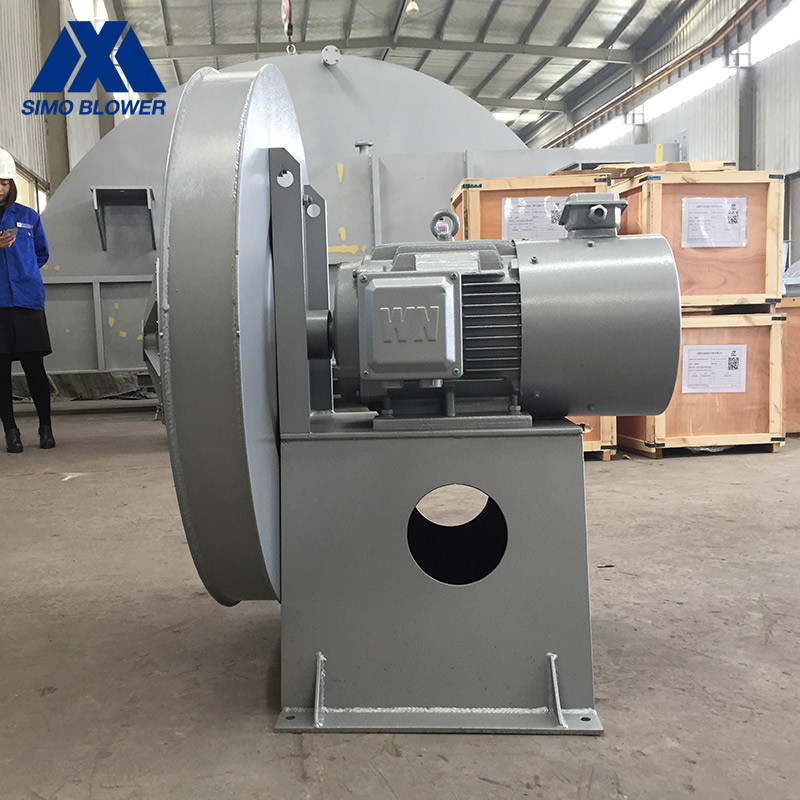

High Temperature Explosion Protection High Pressure Centrifugal Fan
Introduction
The 8-17 series high-pressure small-flow fan is designed for applications requiring high pressure.
Under the premise of ensuring a certain amount of air, the full pressure can reach the high pressure requirement.
It is mainly used for blasting furnace blast and other forced air supply, and can also be used for tunnels to exhaust or supply air through hard pipes.
The fans are divided into general type, explosion-proof type, anti-corrosion type and high temperature type.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (KW) |
8-17 | 7.1A | 2900 | 10728~11973 | 768~2919 | 11~18.5 |
8A | 2930 | 14297~15680 | 1110~4219 | 22~37 | |
9A | 2930 | 18308~20250 | 1591~6019 | 37~55 |
Advantages and Features
1. It can output high outgas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.
2. In the case of common base, the installation is very simple and requires little support from a professional technician.
3. The bearing housing is reserved for the installation position of the temperature and vibration sensors, and the fan operation monitoring device can be conveniently installed.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
