Heavy Duty Heat Dissipation 380V Industrial Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Motor: SIEMENS/ABB/By Your Demand Voltage: 380V/415V/440V/660V/6KV/10KV
Main Shaft: High-strength Carbon Structural Steel Drivetrain: Direct/Coupling Driven/V-belt Driven
Lubrication: Oil Bath Lubrication Color: Customer's Requirement
High Light:

380V Industrial Centrifugal Fans

,

Heat Dissipation Industrial Centrifugal Fans

,

SIEMENS Motor Industrial Centrifugal Fans

Industrial Heavy Duty Heat Dissipation Industrial Centrifugal Fans



Introduction



This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.

It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.

If it contains a lot of impurities, it also can be used, but it will shorten the service life.

The maximum operating temperature of the induced draft fan must not exceed 250°C.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-06 8D 1450 25921989 1202820607 15
10D 1450 40513108 2349340249 55
11D 1450 30362329 3126953571 55
12.4D 1450 38582960 4479276740 90


Advantages and Features



1. Impeller:

12 pieces of backward aerofoil blades are welded between the Arc cone front plate and the flat shaped rear plate. Because of the use of airfoil blades, the fan is guaranteed to have high efficiency, low noise and high strength. The impeller is corrected by static and dynamic balance, so the operation is stable. Forced draught fan and induced draught fan of the same machine number have same impeller structure.



2. Casing:

The casing is a volute welded by ordinary steel plates.

The casing of a single suction fan is made in three different forms: The No. 8 to 12 casing is made into an integral structure and cannot be disassembled; The No. 14 to 16 casing is made into a two open structure; The No. 18~29.5 casing is made into a three open structure.

The induced draft fan and the volute plate are appropriately thickened to prevent wear.



3. Inlet:

The converging and streamlined air inlet is made into a unitary structure and bolted to the inlet side of the fan.



4. Adjustment door:

A device for regulating the flow of the fan, axially mounted in front of the air inlet. The adjustment range is from 0° (full open) to 90°(fully closed).



5. Transmission parts:

The main shaft of the transmission part is made of high-quality steel, and the 5-51 series of fans are all made of roller bearings.

The bearing housing is available in two forms: No. 8 ~ 16 uses a whole cylindrical bearing housing;

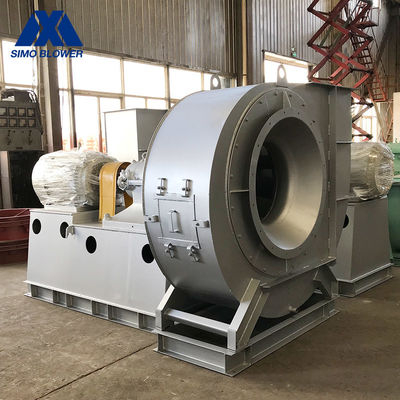

Heavy Duty Heat Dissipation 380V Industrial Centrifugal Fans 0

Heavy Duty Heat Dissipation 380V Industrial Centrifugal Fans 1
