| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Motor: | SIEMENS/ABB/By Your Demand | Voltage: | 380V/415V/440V/660V/6KV/10KV |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
| Lubrication: | Oil Bath Lubrication | Color: | Customer's Requirement |
| High Light: | 415V Industrial Centrifugal Fans,boiler industrial centrifugal fans,forced draught industrial centrifugal fans |
||

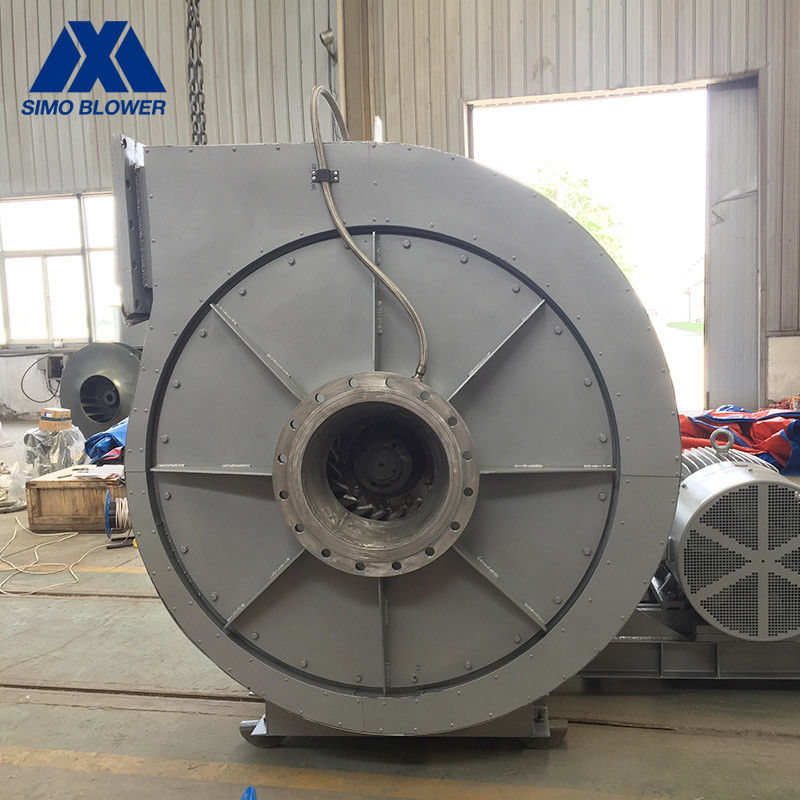

V-Belt Driving High Pressure Industrial Boiler Forced Draught Industrial Centrifugal Fans
Introduction
9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.
The fan can also be used as the blast for various furnace forging furnaces.
It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.
It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
| 9-03 | 8C | 2950 | 16680～17631 | 3019～8117 | 37～55 |
| 9C | 2950 | 21348～22314 | 4326～11632 | 75～110 |
Advantages and Features
1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.
